6-8 WorkCentre C2424 Service Manual

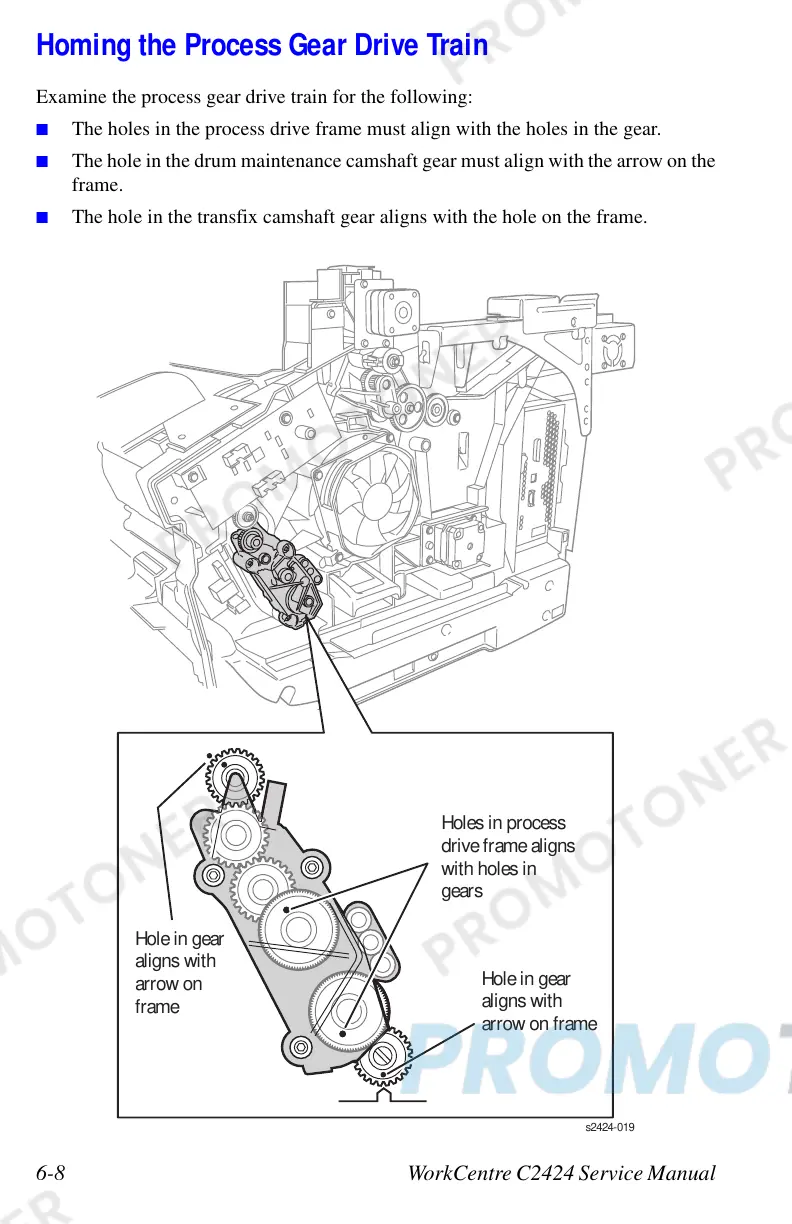

Homing the Process Gear Drive Train
Examine the process gear drive train for the following:
■ The holes in the process drive frame must align with the holes in the gear.
■ The hole in the drum maintenance camshaft gear must align with the arrow on the
frame.
■ The hole in the transfix camshaft gear aligns with the hole on the frame.
s2424-01
9
Hole in gear
aligns with
arrow on
frame
Holes in process
drive frame aligns
with holes in
gears
Hole in gear
aligns with
arrow on frame
