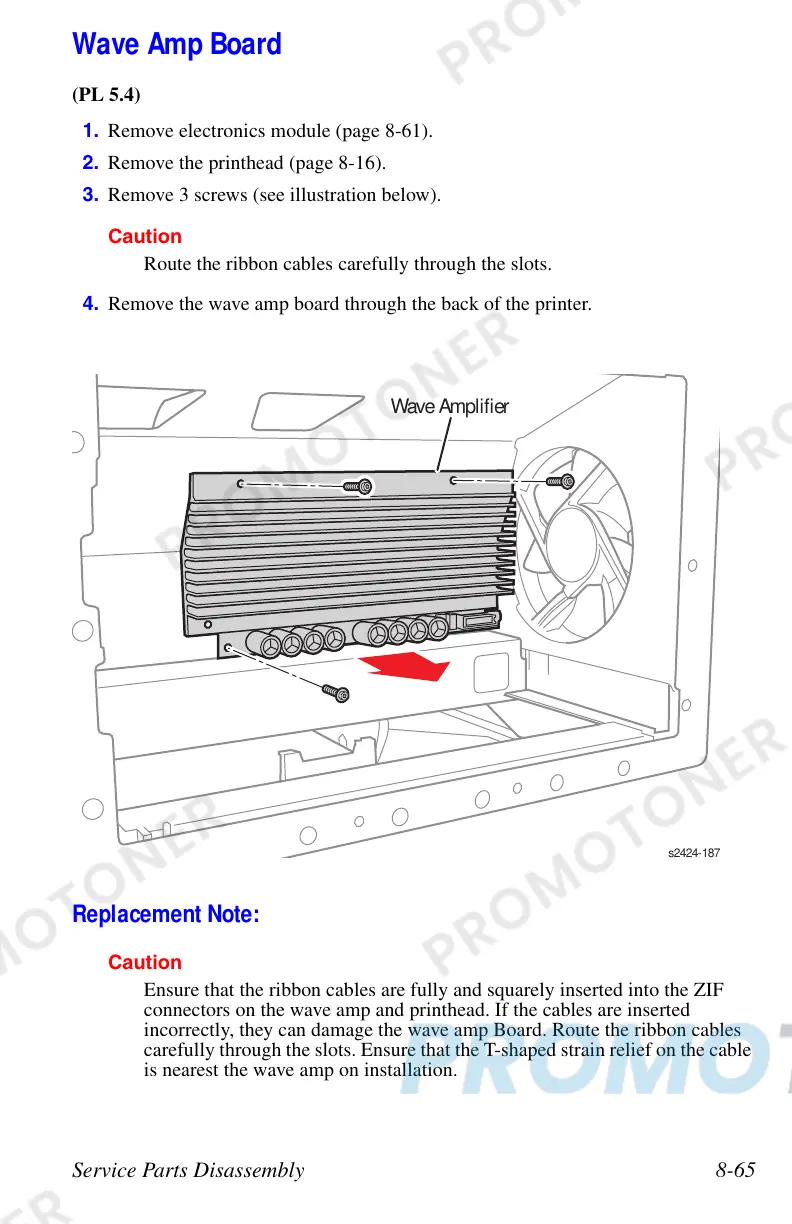

Service Parts Disassembly 8-65
Wave Amp Board
(PL 5.4)
1. Remove electronics module (page 8-61).
2. Remove the printhead (page 8-16).
3. Remove 3 screws (see illustration below).
Caution
Route the ribbon cables carefully through the slots.
4. Remove the wave amp board through the back of the printer.
Replacement Note:
Caution
Ensure that the ribbon cables are fully and squarely inserted into the ZIF
connectors on the wave amp and printhead. If the cables are inserted
incorrectly, they can damage the wave amp Board. Route the ribbon cables
carefully through the slots. Ensure that the T-shaped strain relief on the cable
is nearest the wave amp on installation.
Wave Amplifier
