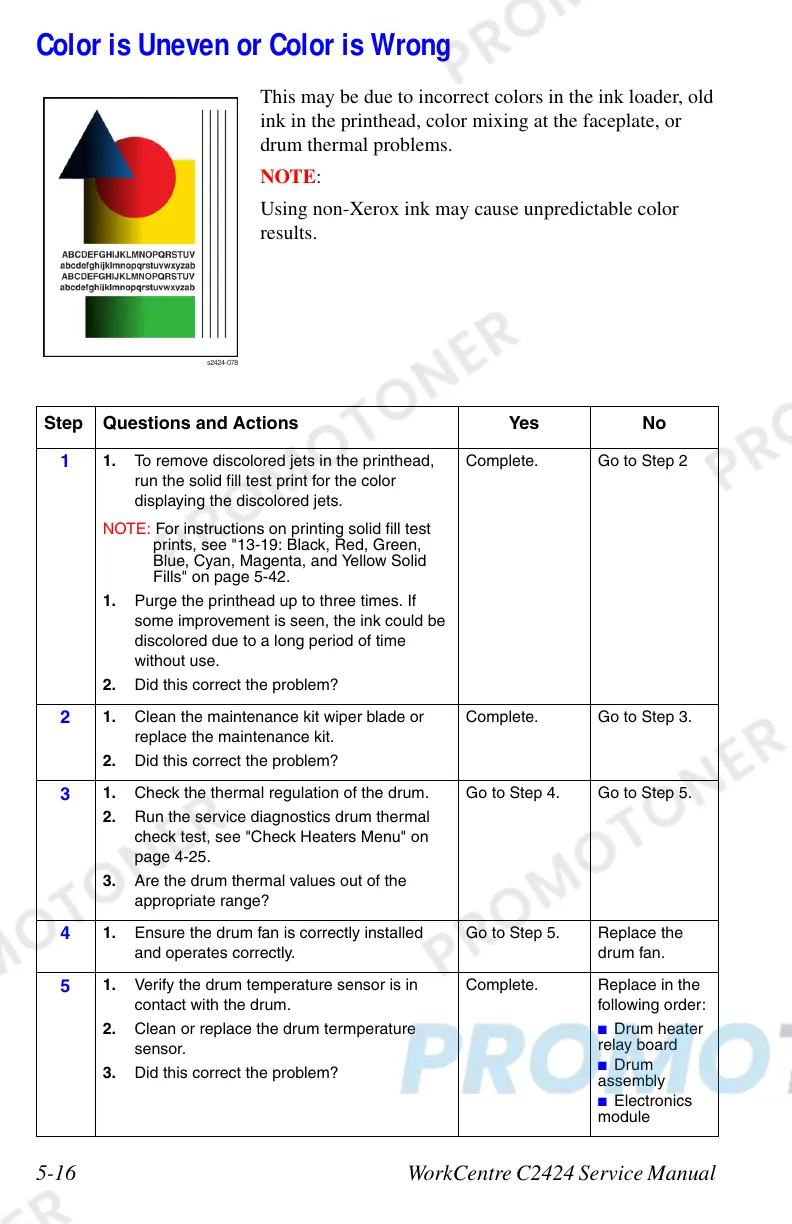

Color is Uneven or Color is Wrong
This may be due to incorrect colors in the ink loader, old
ink in the printhead, color mixing at the faceplate, or
drum thermal problems.
NOTE:
Using non-Xerox ink may cause unpredictable color
results.
Step Questions and Actions Yes No
1
1. To remove discolored jets in the printhead,
run the solid fill test print for the color
displaying the discolored jets.
NOTE: For instructions on printing solid fill test
prints, see "13-19: Black, Red, Green,
Blue, Cyan, Magenta, and Yellow Solid
Fills" on page 5-42.
1. Purge the printhead up to three times. If
some improvement is seen, the ink could be
discolored due to a long period of time
without use.
2. Did this correct the problem?
Complete. Go to Step 2
2
1. Clean the maintenance kit wiper blade or
replace the maintenance kit.
2. Did this correct the problem?
Complete. Go to Step 3.
3
1. Check the thermal regulation of the drum.
2. Run the service diagnostics drum thermal
check test, see "Check Heaters Menu" on
page 4-25.
3. Are the drum thermal values out of the
appropriate range?
Go to Step 4. Go to Step 5.
4
1. Ensure the drum fan is correctly installed
and operates correctly.
Go to Step 5. Replace the
drum fan.
5
1. Verify the drum temperature sensor is in
contact with the drum.
2. Clean or replace the drum termperature
sensor.
3. Did this correct the problem?
Complete. Replace in the
following order:
■ Drum heater
relay board
■ Drum
assembly
■ Electronics
module
