General Troubleshooting 4-35

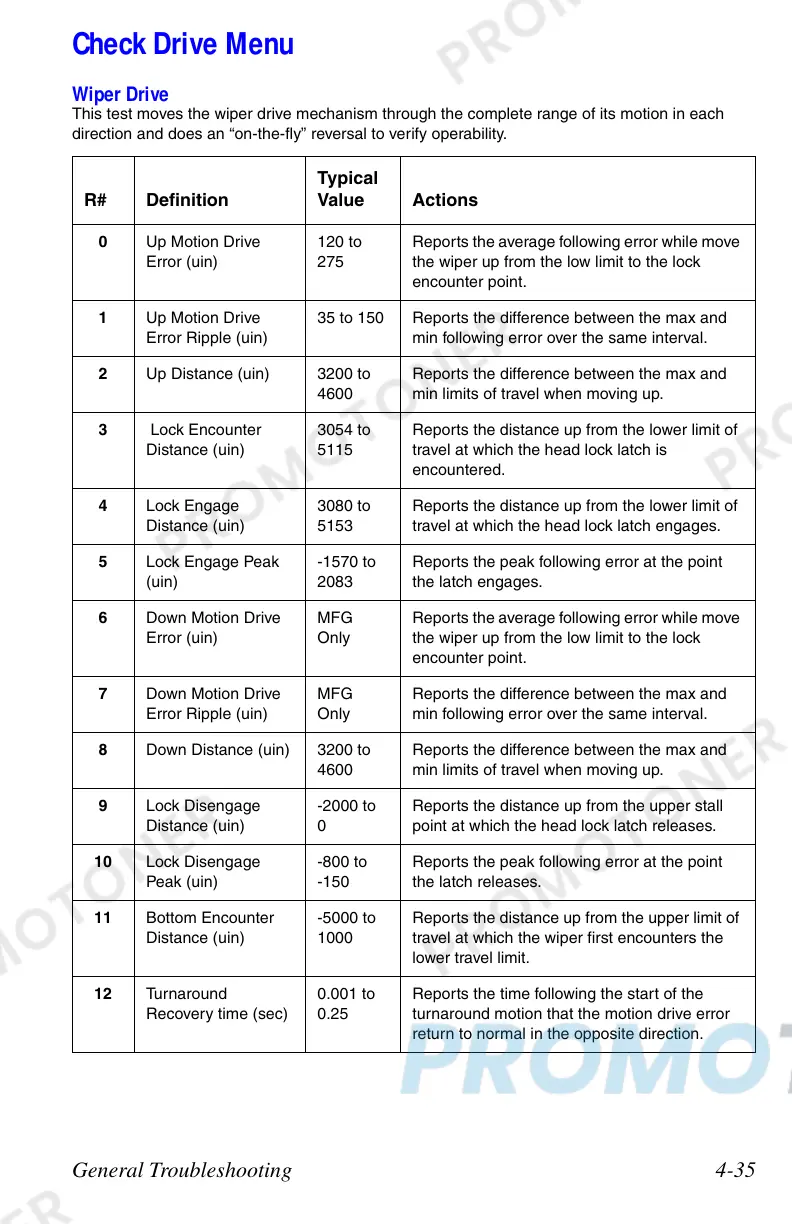

Check Drive Menu
Wiper Drive
This test moves the wiper drive mechanism through the complete range of its motion in each
direction and does an “on-the-fly” reversal to verify operability.
R# Definition
Typical
Value Actions
0 Up Motion Drive
Error (uin)
120 to
275
Reports the average following error while move
the wiper up from the low limit to the lock
encounter point.
1 Up Motion Drive
Error Ripple (uin)
35 to 150 Reports the difference between the max and
min following error over the same interval.
2 Up Distance (uin) 3200 to
4600
Reports the difference between the max and
min limits of travel when moving up.
3 Lock Encounter
Distance (uin)
3054 to
5115
Reports the distance up from the lower limit of
travel at which the head lock latch is
encountered.
4 Lock Engage
Distance (uin)
3080 to
5153
Reports the distance up from the lower limit of
travel at which the head lock latch engages.
5 Lock Engage Peak
(uin)
-1570 to
2083
Reports the peak following error at the point
the latch engages.
6 Down Motion Drive
Error (uin)
MFG
Only
Reports the average following error while move
the wiper up from the low limit to the lock
encounter point.
7 Down Motion Drive
Error Ripple (uin)
MFG
Only
Reports the difference between the max and
min following error over the same interval.
8 Down Distance (uin) 3200 to
4600
Reports the difference between the max and
min limits of travel when moving up.
9 Lock Disengage
Distance (uin)
-2000 to
0
Reports the distance up from the upper stall
point at which the head lock latch releases.
10 Lock Disengage
Peak (uin)
-800 to
-150
Reports the peak following error at the point
the latch releases.
11 Bottom Encounter
Distance (uin)
-5000 to
1000
Reports the distance up from the upper limit of
travel at which the wiper first encounters the
lower travel limit.
12 Turnaround
Recovery time (sec)
0.001 to
0.25
Reports the time following the start of the
turnaround motion that the motion drive error
return to normal in the opposite direction.
