8-60 WorkCentre C2424 Service Manual

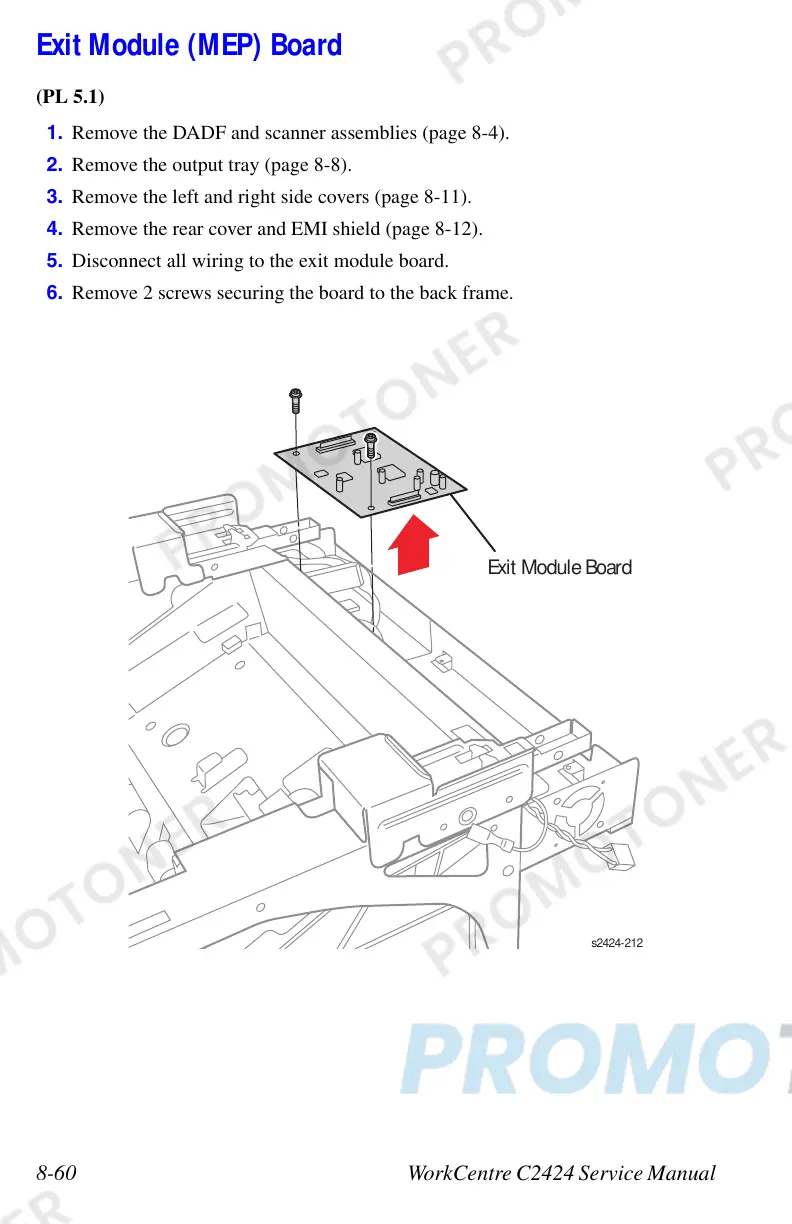

Exit Module (MEP) Board
(PL 5.1)
1. Remove the DADF and scanner assemblies (page 8-4).
2. Remove the output tray (page 8-8).
3. Remove the left and right side covers (page 8-11).
4. Remove the rear cover and EMI shield (page 8-12).
5. Disconnect all wiring to the exit module board.
6. Remove 2 screws securing the board to the back frame.
s2424-212
Exit Module Board
