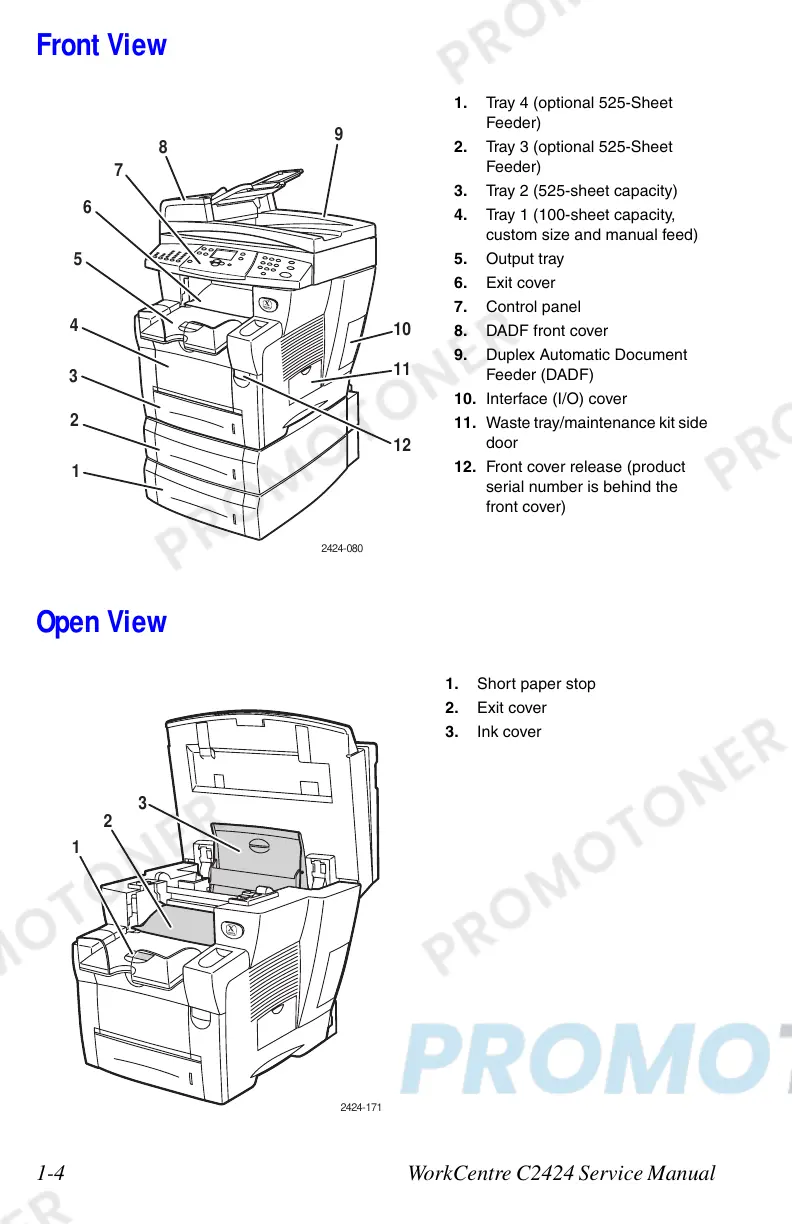

1-4 WorkCentre C2424 Service Manual
Front View
Open View
1. Tray 4 (optional 525-Sheet
Feeder)
2. Tray 3 (optional 525-Sheet
Feeder)
3. Tray 2 (525-sheet capacity)
4. Tray 1 (100-sheet capacity,
custom size and manual feed)
5. Output tray
6. Exit cover
7. Control panel
8. DADF front cover
9. Duplex Automatic Document
Feeder (DADF)
10. Interface (I/O) cover
11. Waste tray/maintenance kit side
door
12. Front cover release (product
serial number is behind the
front cover)
1. Short paper stop
2. Exit cover
3. Ink cover
2424-080
1
2
3
4
5
6
9
10
11
12
7
8
2424-1
71
2
3
1
