10-10 WorkCentre C2424 Service Manual

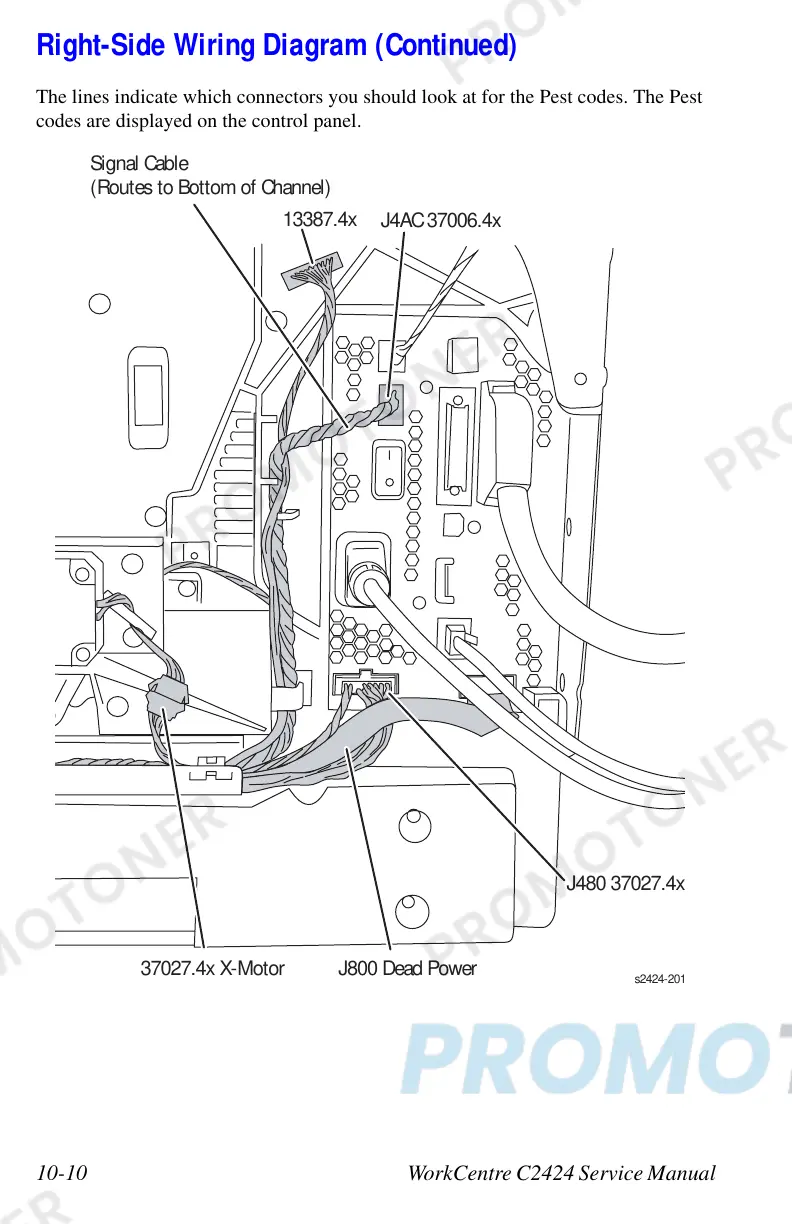

Right-Side Wiring Diagram (Continued)

The lines indicate which connectors you should look at for the Pest codes. The Pest

codes are displayed on the control panel.

13387.4x

37027.4x X-Motor

Signal Cable

(Routes to Bottom of Channel)

J800 Dead Power

J4AC 37006.4x

J480 37027.

s2424-2
