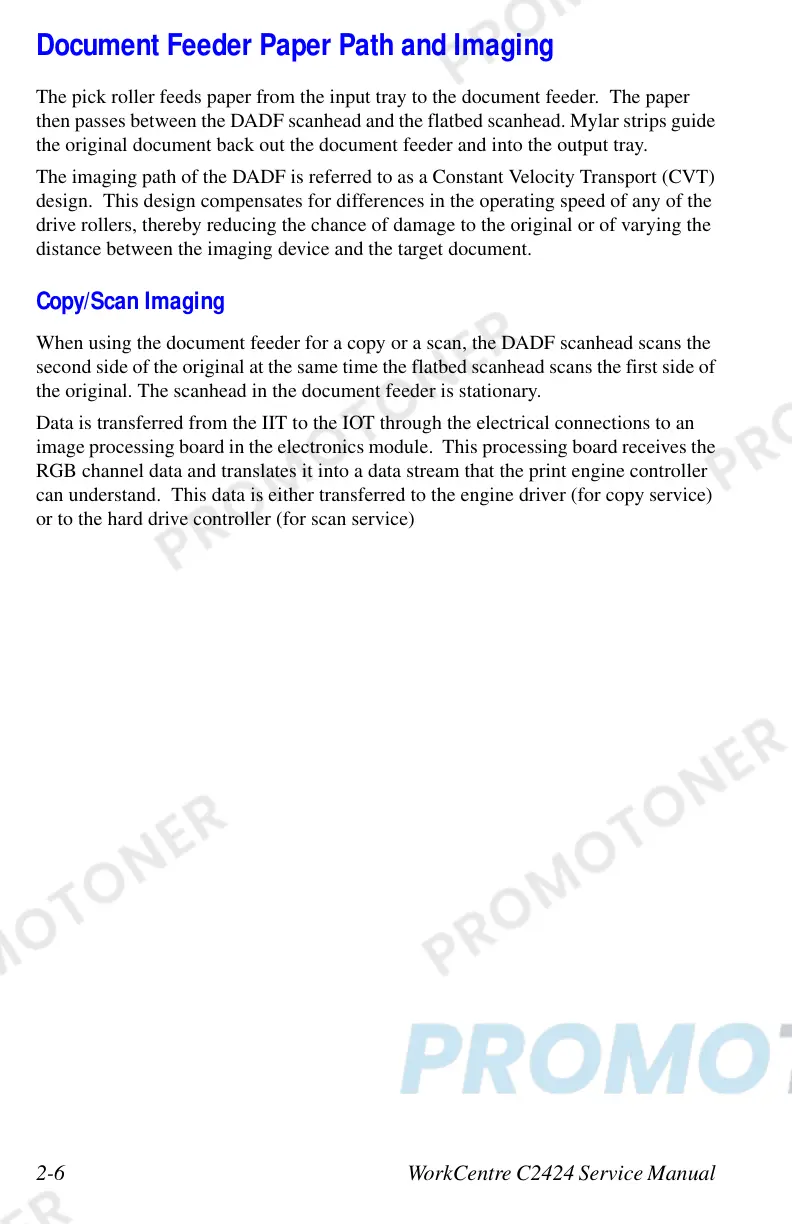

Document Feeder Paper Path and Imaging
The pick roller feeds paper from the input tray to the document feeder. The paper
then passes between the DADF scanhead and the flatbed scanhead. Mylar strips guide
the original document back out the document feeder and into the output tray.
The imaging path of the DADF is referred to as a Constant Velocity Transport (CVT)
design. This design compensates for differences in the operating speed of any of the
drive rollers, thereby reducing the chance of damage to the original or of varying the
distance between the imaging device and the target document.
Copy/Scan Imaging
When using the document feeder for a copy or a scan, the DADF scanhead scans the
second side of the original at the same time the flatbed scanhead scans the first side of
the original. The scanhead in the document feeder is stationary.
Data is transferred from the IIT to the IOT through the electrical connections to an
image processing board in the electronics module. This processing board receives the
RGB channel data and translates it into a data stream that the print engine controller
can understand. This data is either transferred to the engine driver (for copy service)
or to the hard drive controller (for scan service)
