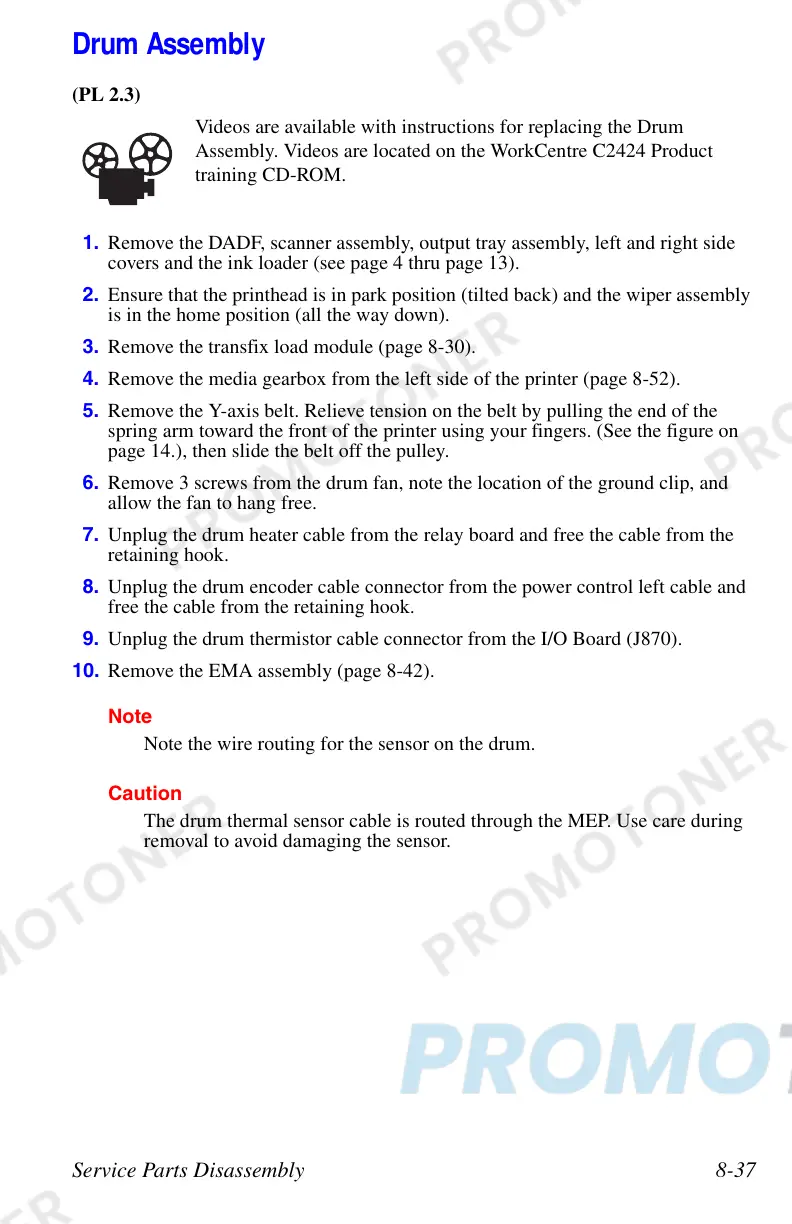

Service Parts Disassembly 8-37
Drum Assembly
(PL 2.3)
Videos are available with instructions for replacing the Drum
Assembly. Videos are located on the WorkCentre C2424 Product
training CD-ROM.
1. Remove the DADF, scanner assembly, output tray assembly, left and right side
covers and the ink loader (see page 4 thru page 13).
2. Ensure that the printhead is in park position (tilted back) and the wiper assembly
is in the home position (all the way down).
3. Remove the transfix load module (page 8-30).
4. Remove the media gearbox from the left side of the printer (page 8-52).
5. Remove the Y-axis belt. Relieve tension on the belt by pulling the end of the
spring arm toward the front of the printer using your fingers. (See the figure on
page 14.), then slide the belt off the pulley.
6. Remove 3 screws from the drum fan, note the location of the ground clip, and
allow the fan to hang free.
7. Unplug the drum heater cable from the relay board and free the cable from the
retaining hook.
8. Unplug the drum encoder cable connector from the power control left cable and
free the cable from the retaining hook.
9. Unplug the drum thermistor cable connector from the I/O Board (J870).
10. Remove the EMA assembly (page 8-42).
Note
Note the wire routing for the sensor on the drum.
Caution
The drum thermal sensor cable is routed through the MEP. Use care during
removal to avoid damaging the sensor.
To Next Page
