Service Parts Disassembly 8-57

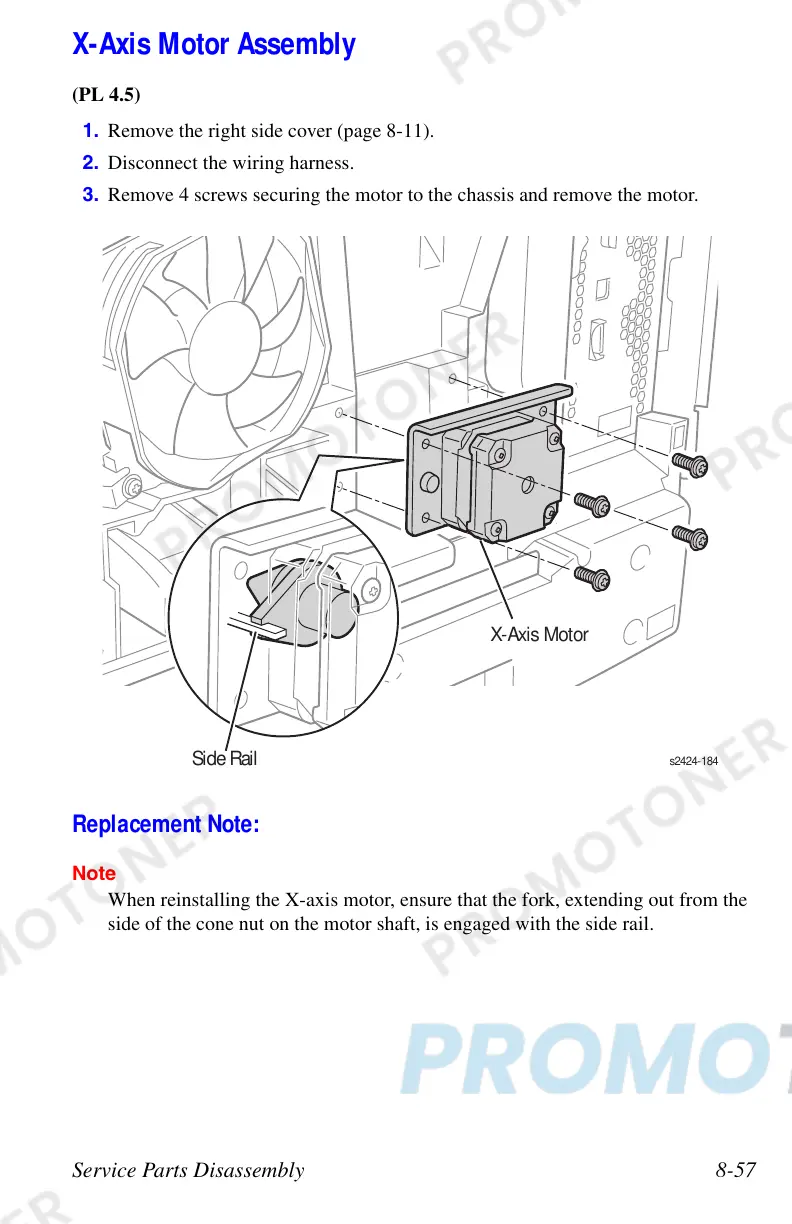

X-Axis Motor Assembly
(PL 4.5)
1. Remove the right side cover (page 8-11).
2. Disconnect the wiring harness.
3. Remove 4 screws securing the motor to the chassis and remove the motor.
Replacement Note:
Note
When reinstalling the X-axis motor, ensure that the fork, extending out from the
side of the cone nut on the motor shaft, is engaged with the side rail.
s2424-1
X-Axis Motor
