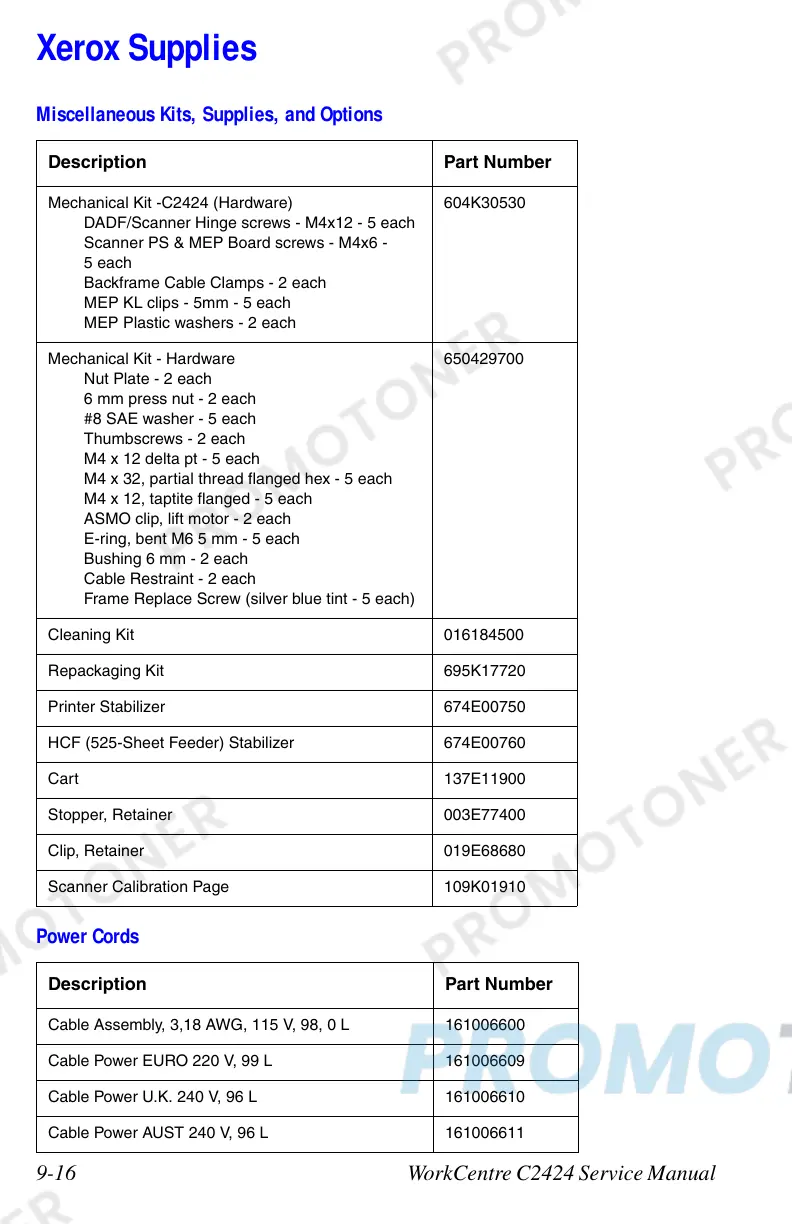

9-16 WorkCentre C2424 Service Manual
Xerox Supplies
Miscellaneous Kits, Supplies, and Options
Description Part Number
Mechanical Kit -C2424 (Hardware)
DADF/Scanner Hinge screws - M4x12 - 5 each
Scanner PS & MEP Board screws - M4x6 -
5 each
Backframe Cable Clamps - 2 each
MEP KL clips - 5mm - 5 each
MEP Plastic washers - 2 each
604K30530
Mechanical Kit - Hardware
Nut Plate - 2 each
6 mm press nut - 2 each
#8 SAE washer - 5 each
Thumbscrews - 2 each
M4 x 12 delta pt - 5 each
M4 x 32, partial thread flanged hex - 5 each
M4 x 12, taptite flanged - 5 each
ASMO clip, lift motor - 2 each
E-ring, bent M6 5 mm - 5 each
Bushing 6 mm - 2 each
Cable Restraint - 2 each
Frame Replace Screw (silver blue tint - 5 each)
650429700
Cleaning Kit 016184500
Repackaging Kit 695K17720
Printer Stabilizer 674E00750
HCF (525-Sheet Feeder) Stabilizer 674E00760
Cart 137E11900
Stopper, Retainer 003E77400
Clip, Retainer 019E68680
Scanner Calibration Page 109K01910
Power Cords
Description Part Number
Cable Assembly, 3,18 AWG, 115 V, 98, 0 L 161006600
Cable Power EURO 220 V, 99 L 161006609
Cable Power U.K. 240 V, 96 L 161006610
Cable Power AUST 240 V, 96 L 161006611
