Adjustments and Calibrations 6-9

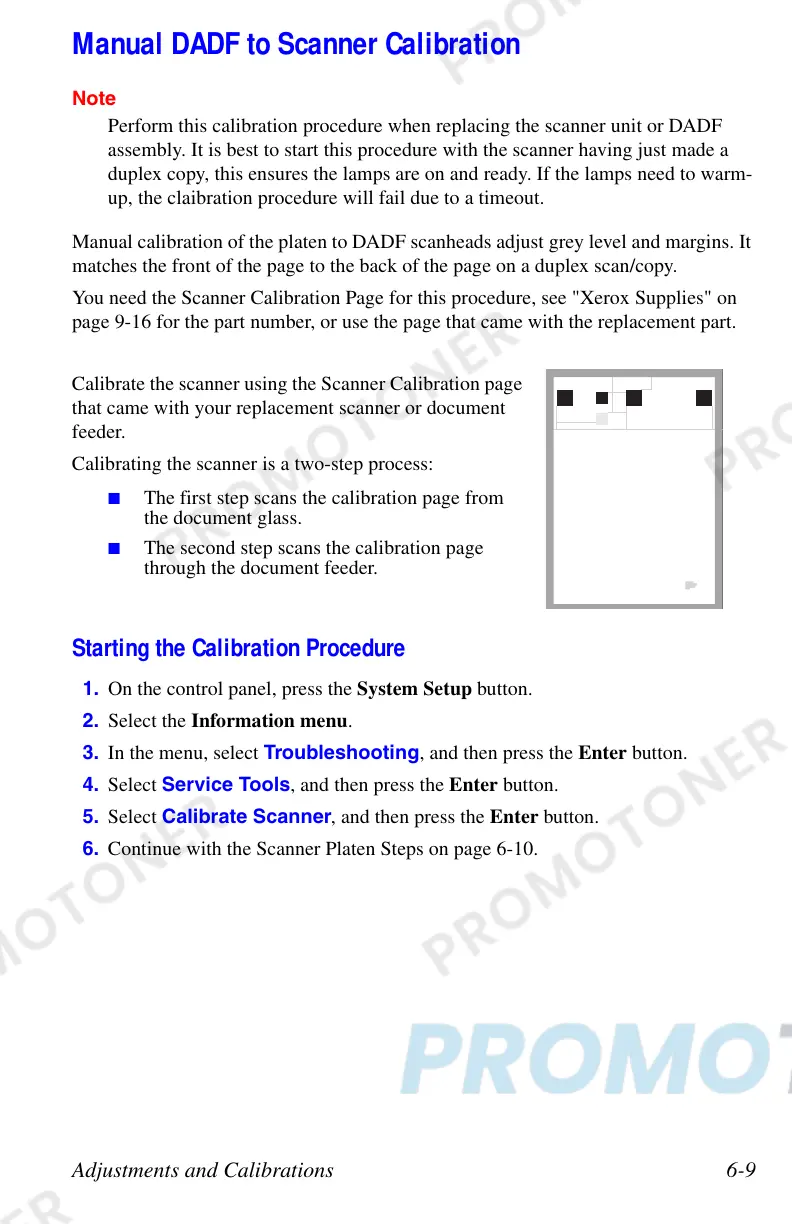

Manual DADF to Scanner Calibration
Note
Perform this calibration procedure when replacing the scanner unit or DADF
assembly. It is best to start this procedure with the scanner having just made a
duplex copy, this ensures the lamps are on and ready. If the lamps need to warm-
up, the claibration procedure will fail due to a timeout.
Manual calibration of the platen to DADF scanheads adjust grey level and margins. It
matches the front of the page to the back of the page on a duplex scan/copy.
You need the Scanner Calibration Page for this procedure, see "Xerox Supplies" on
page 9-16 for the part number, or use the page that came with the replacement part.
Starting the Calibration Procedure
1. On the control panel, press the System Setup button.
2. Select the Information menu.
3. In the menu, select Troubleshooting, and then press the Enter button.
4. Select Service Tools, and then press the Enter button.
5. Select Calibrate Scanner, and then press the Enter button.
6. Continue with the Scanner Platen Steps on page 6-10.
Calibrate the scanner using the Scanner Calibration page
that came with your replacement scanner or document
feeder.
Calibrating the scanner is a two-step process:
■ The first step scans the calibration page from
the document glass.
■ The second step scans the calibration page
through the document feeder.
