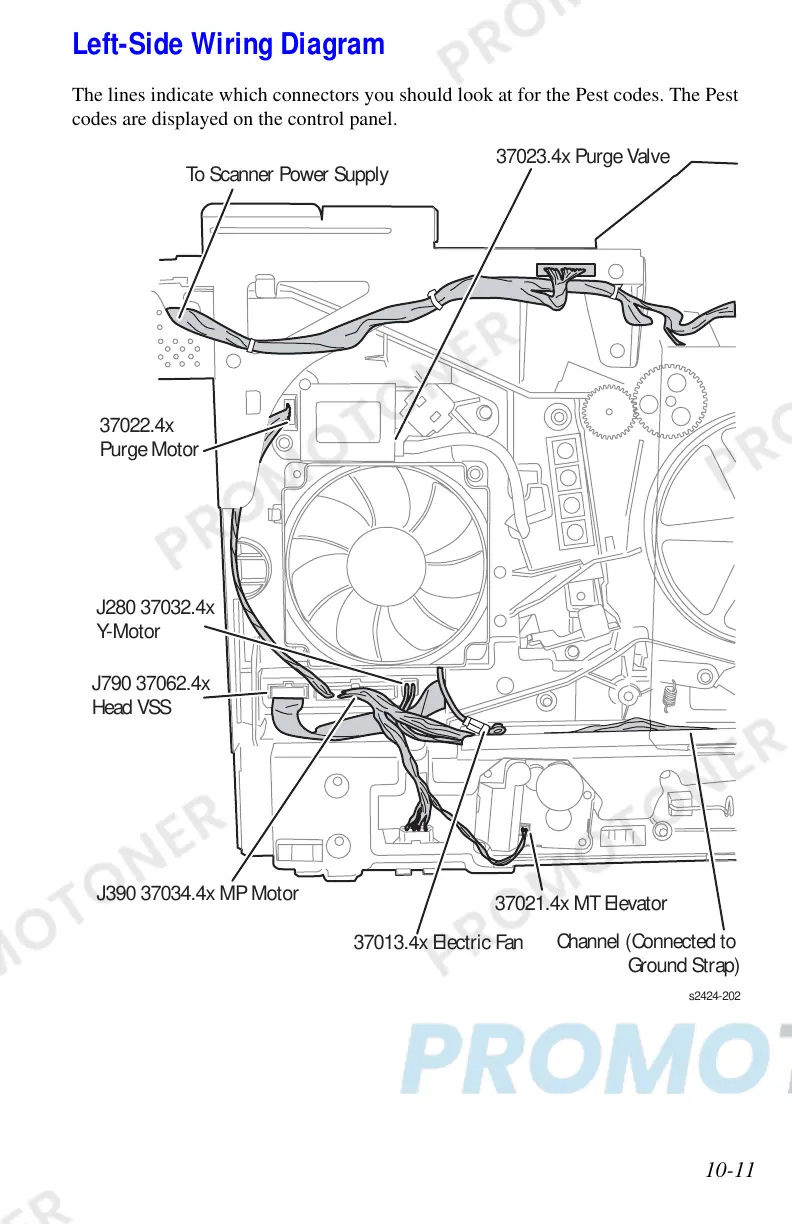

Left-Side Wiring Diagram

The lines indicate which connectors you should look at for the Pest codes. The Pest

codes are displayed on the control panel.

s2424-202

37023.4x Purge Valve

37022.4x

Purge Motor

37013.4x Electric Fan

J280 37032.4x

Y-Motor

790 37062.4x

ead VSS

J390 37034.4x MP Motor

37021.4x MT Elevator

Channel (Connected

Ground Stra

To Scanner Power Supply
