Service Parts Disassembly 8-27

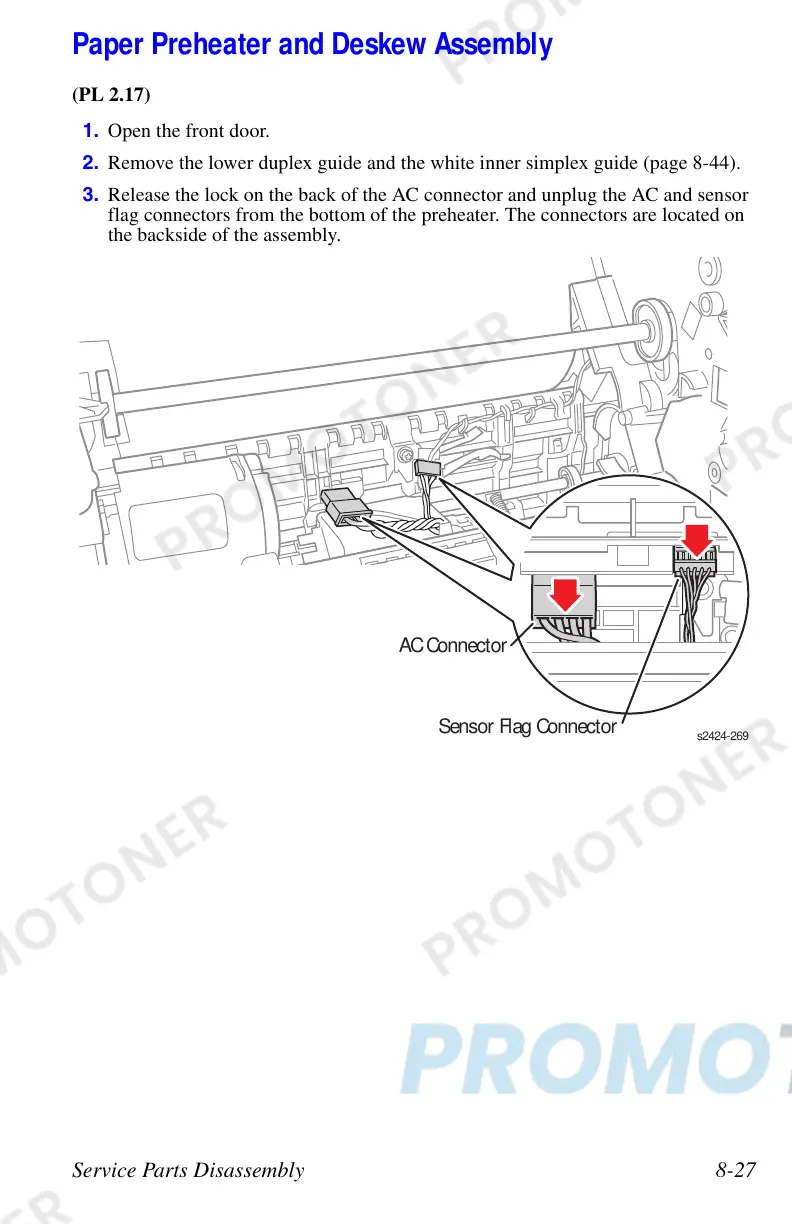

Paper Preheater and Deskew Assembly
(PL 2.17)
1. Open the front door.
2. Remove the lower duplex guide and the white inner simplex guide (page 8-44).
3. Release the lock on the back of the AC connector and unplug the AC and sensor
flag connectors from the bottom of the preheater. The connectors are located on
the backside of the assembly.
AC Connector
Sensor Flag Connector
s2424-26
To Next Page
