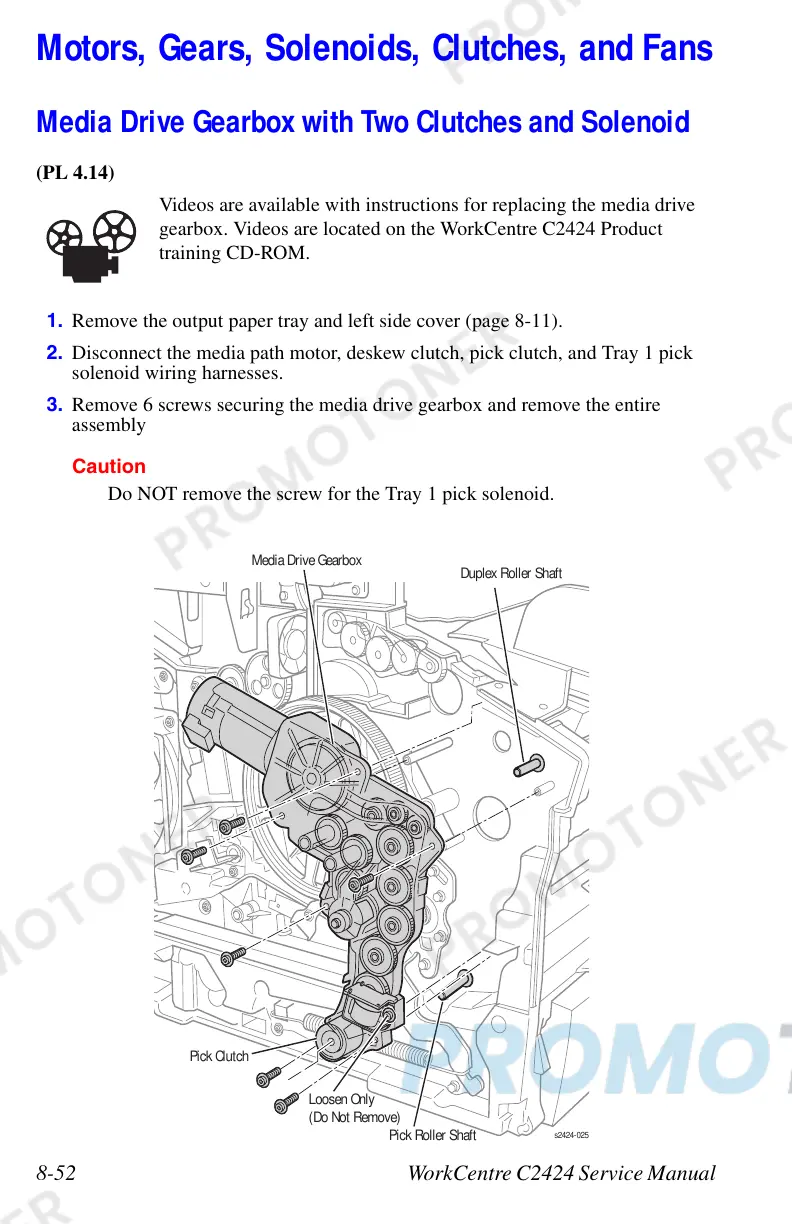

8-52 WorkCentre C2424 Service Manual
Motors, Gears, Solenoids, Clutches, and Fans
Media Drive Gearbox with Two Clutches and Solenoid
(PL 4.14)
Videos are available with instructions for replacing the media drive
gearbox. Videos are located on the WorkCentre C2424 Product
training CD-ROM.
1. Remove the output paper tray and left side cover (page 8-11).
2. Disconnect the media path motor, deskew clutch, pick clutch, and Tray 1 pick
solenoid wiring harnesses.
3. Remove 6 screws securing the media drive gearbox and remove the entire
assembly
Caution
Do NOT remove the screw for the Tray 1 pick solenoid.
Pick Clutch
s2424-0
Duplex Roller Shaft
Loosen Only
(Do Not Remove)
To Next Page
