5-10 WorkCentre C2424 Service Manual

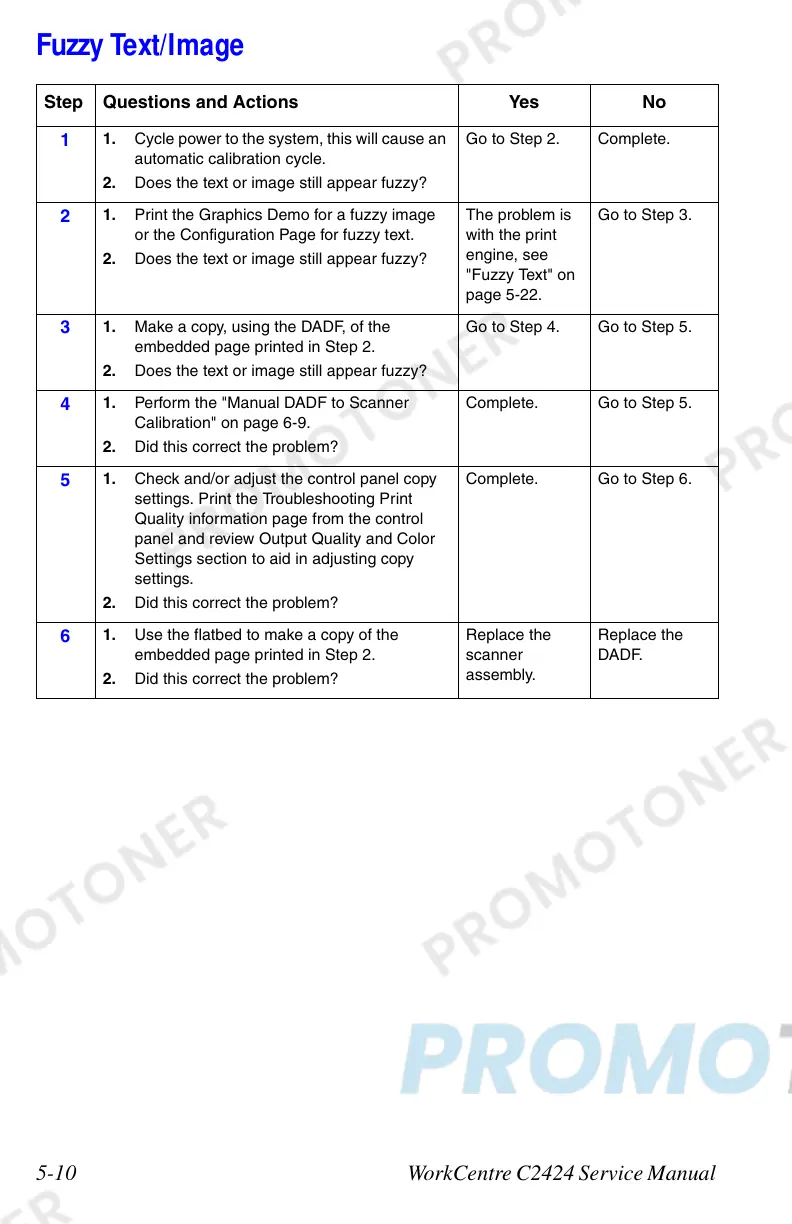

Fuzzy Text/Image
Step Questions and Actions Yes No
1
1. Cycle power to the system, this will cause an
automatic calibration cycle.
2. Does the text or image still appear fuzzy?
Go to Step 2. Complete.
2
1. Print the Graphics Demo for a fuzzy image
or the Configuration Page for fuzzy text.
2. Does the text or image still appear fuzzy?
The problem is
with the print
engine, see
"Fuzzy Text" on
page 5-22.
Go to Step 3.
3
1. Make a copy, using the DADF, of the
embedded page printed in Step 2.
2. Does the text or image still appear fuzzy?
Go to Step 4. Go to Step 5.
4
1. Perform the "Manual DADF to Scanner
Calibration" on page 6-9.
2. Did this correct the problem?
Complete. Go to Step 5.
5
1. Check and/or adjust the control panel copy
settings. Print the Troubleshooting Print
Quality information page from the control
panel and review Output Quality and Color
Settings section to aid in adjusting copy
settings.
2. Did this correct the problem?
Complete. Go to Step 6.
6
1. Use the flatbed to make a copy of the
embedded page printed in Step 2.
2. Did this correct the problem?
Replace the
scanner
assembly.
Replace the
DADF.
