10-14 WorkCentre C2424 Service Manual

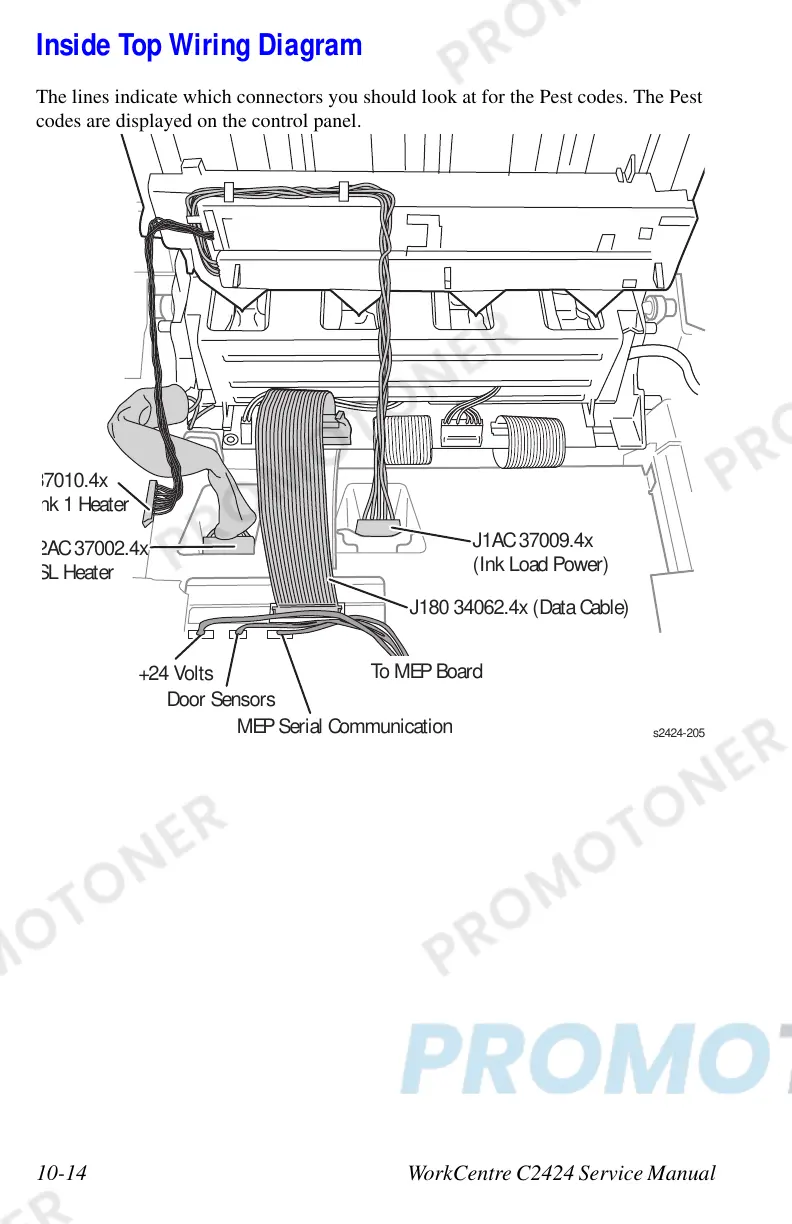

Inside Top Wiring Diagram

The lines indicate which connectors you should look at for the Pest codes. The Pest

codes are displayed on the control panel.

MEP Serial Communication

Door Sensors

+24 Volts

s2424-2

010.4x

k 1 Heater

J180 34062.4x (Data Cable)

J1AC 37009.4x

(Ink Load Power)

AC 37002.4x

L Heater

To MEP Board
