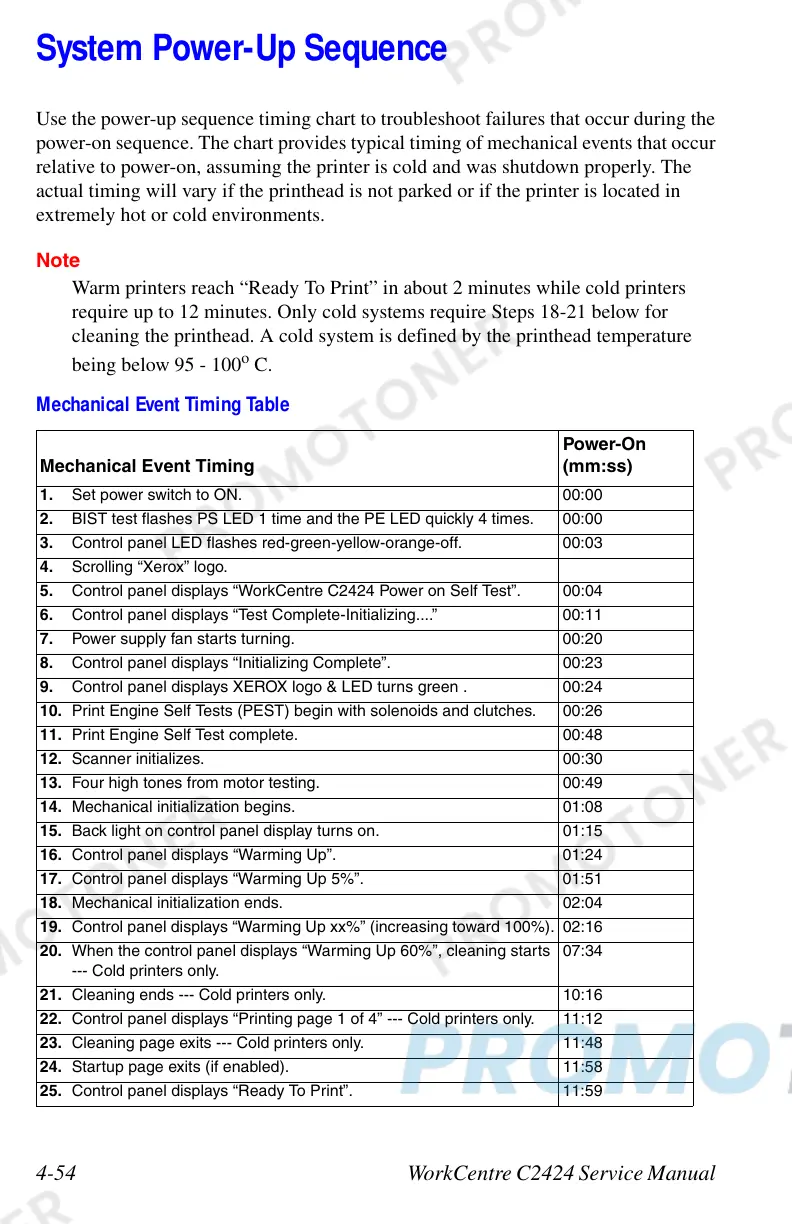

System Power-Up Sequence
Use the power-up sequence timing chart to troubleshoot failures that occur during the
power-on sequence. The chart provides typical timing of mechanical events that occur
relative to power-on, assuming the printer is cold and was shutdown properly. The
actual timing will vary if the printhead is not parked or if the printer is located in
extremely hot or cold environments.
Note
Warm printers reach “Ready To Print” in about 2 minutes while cold printers
require up to 12 minutes. Only cold systems require Steps 18-21 below for
cleaning the printhead. A cold system is defined by the printhead temperature
being below 95 - 100
o
C.
Mechanical Event Timing Table
Mechanical Event Timing
Power-On
(mm:ss)
1. Set power switch to ON. 00:00
2. BIST test flashes PS LED 1 time and the PE LED quickly 4 times. 00:00
3. Control panel LED flashes red-green-yellow-orange-off. 00:03
4. Scrolling “Xerox” logo.
5. Control panel displays “WorkCentre C2424 Power on Self Test”. 00:04
6. Control panel displays “Test Complete-Initializing....” 00:11
7. Power supply fan starts turning. 00:20
8. Control panel displays “Initializing Complete”. 00:23
9. Control panel displays XEROX logo & LED turns green . 00:24
10. Print Engine Self Tests (PEST) begin with solenoids and clutches. 00:26
11. Print Engine Self Test complete. 00:48
12. Scanner initializes. 00:30
13. Four high tones from motor testing. 00:49
14. Mechanical initialization begins. 01:08
15. Back light on control panel display turns on. 01:15
16. Control panel displays “Warming Up”. 01:24
17. Control panel displays “Warming Up 5%”. 01:51
18. Mechanical initialization ends. 02:04
19. Control panel displays “Warming Up xx%” (increasing toward 100%). 02:16
20. When the control panel displays “Warming Up 60%”, cleaning starts
--- Cold printers only.
07:34
21. Cleaning ends --- Cold printers only. 10:16
22. Control panel displays “Printing page 1 of 4” --- Cold printers only. 11:12
23. Cleaning page exits --- Cold printers only. 11:48
24. Startup page exits (if enabled). 11:58
25. Control panel displays “Ready To Print”. 11:59
