10-2 WorkCentre C2424 Service Manual

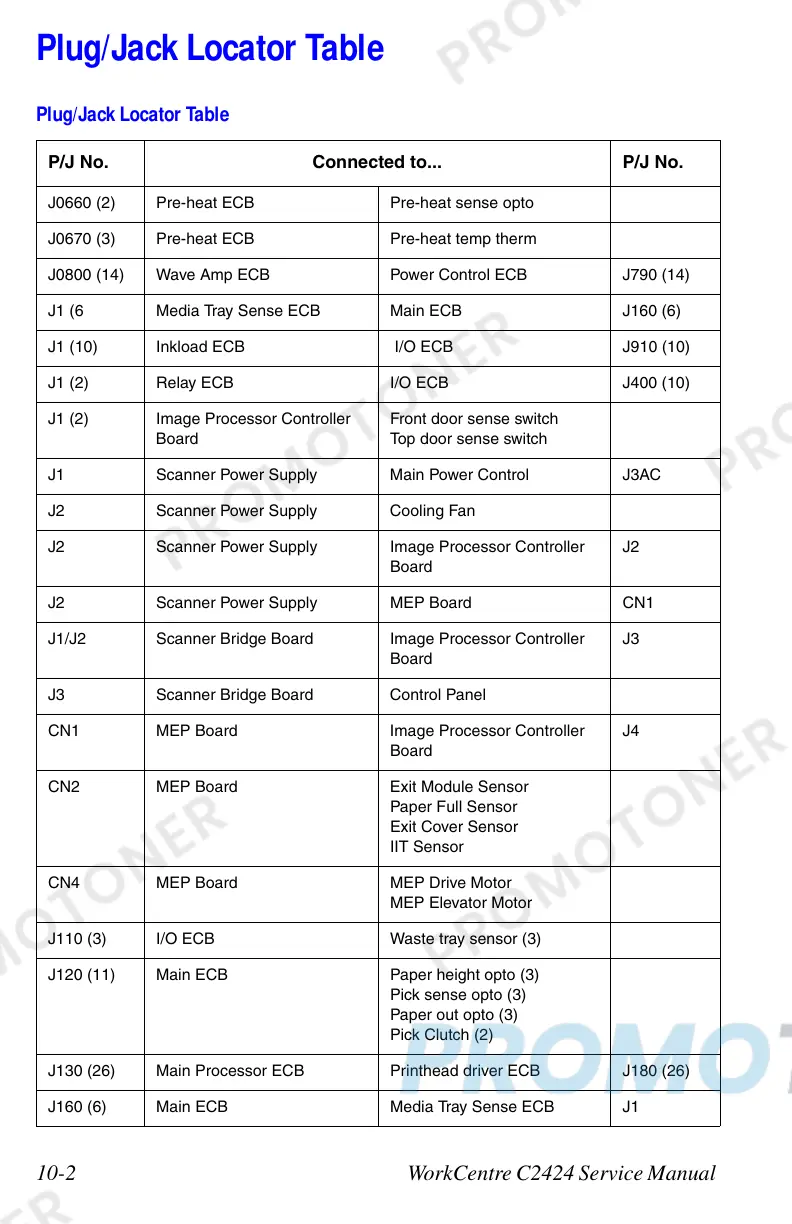

Plug/Jack Locator Table
Plug/Jack Locator Table
P/J No. Connected to... P/J No.
J0660 (2) Pre-heat ECB Pre-heat sense opto
J0670 (3) Pre-heat ECB Pre-heat temp therm
J0800 (14) Wave Amp ECB Power Control ECB J790 (14)
J1 (6 Media Tray Sense ECB Main ECB J160 (6)
J1 (10) Inkload ECB I/O ECB J910 (10)
J1 (2) Relay ECB I/O ECB J400 (10)
J1 (2) Image Processor Controller
Board
Front door sense switch
Top door sense switch
J1 Scanner Power Supply Main Power Control J3AC
J2 Scanner Power Supply Cooling Fan
J2 Scanner Power Supply Image Processor Controller
Board
J2
J2 Scanner Power Supply MEP Board CN1
J1/J2 Scanner Bridge Board Image Processor Controller
Board
J3
J3 Scanner Bridge Board Control Panel
CN1 MEP Board Image Processor Controller
Board
J4
CN2 MEP Board Exit Module Sensor
Paper Full Sensor
Exit Cover Sensor
IIT Sensor
CN4 MEP Board MEP Drive Motor
MEP Elevator Motor
J110 (3) I/O ECB Waste tray sensor (3)
J120 (11) Main ECB Paper height opto (3)
Pick sense opto (3)
Paper out opto (3)
Pick Clutch (2)
J130 (26) Main Processor ECB Printhead driver ECB J180 (26)
J160 (6) Main ECB Media Tray Sense ECB J1
