Manage the Hubs using the AnywhereUSB Manager AnywhereUSB Manager window

AnywhereUSB® Plus User Guide

Set Hub preferences

In the AnywhereUSB Manager, you can set preferences for keepalive time messages and responses

and how often the AnywhereUSB Manager searches for a Hub and the Hub response time.

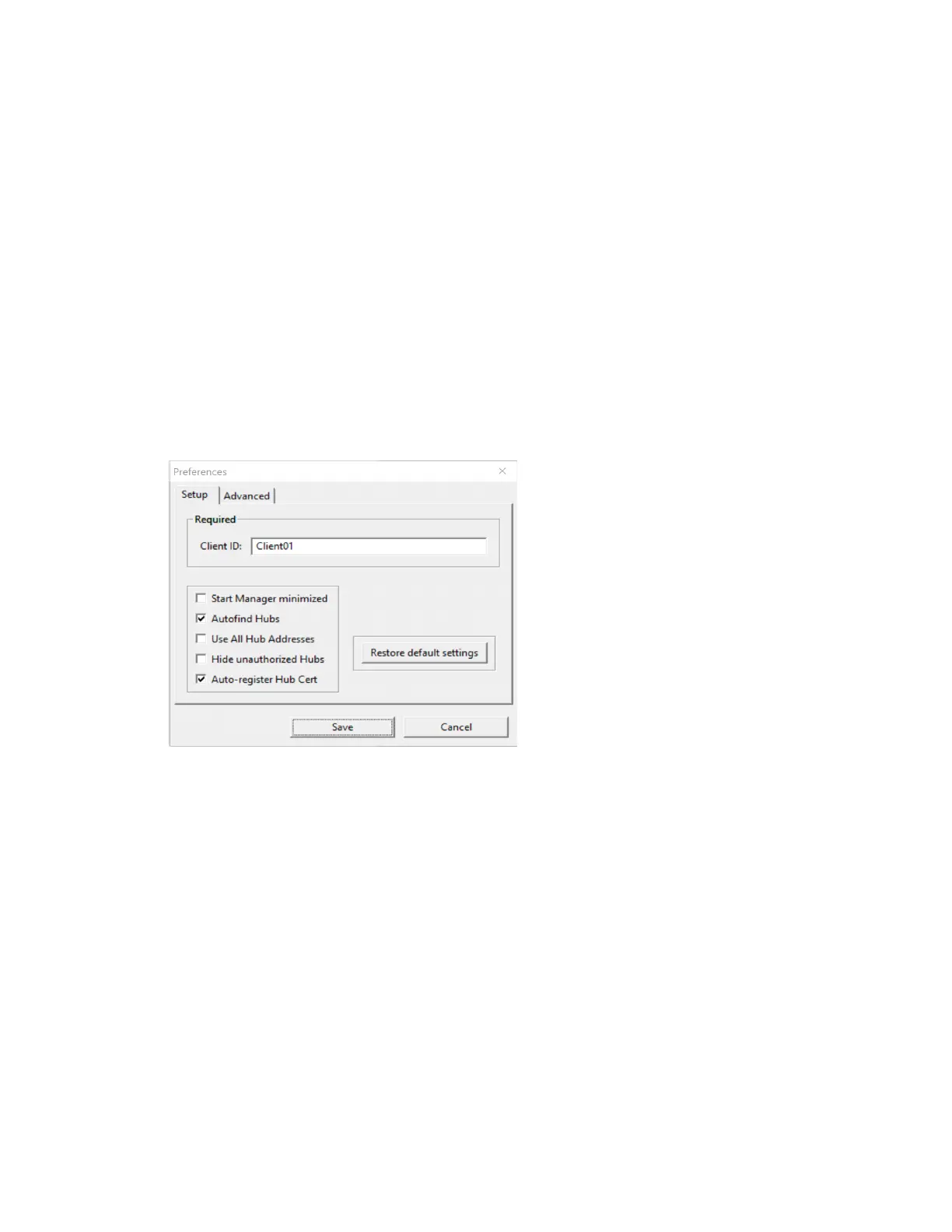

Click File > Preferences to display the Preferences dialog.

Setup tab

Client ID

Start Manager minimized

Autofind Hubs

Use All Hub Addresses

Hide unauthorized Hubs

Auto-register Hub Cert

Restore default settings

Advanced tab

Specify search, response, and keepalive intervals for a Hub

Default Chapter9
