Hardware AnywhereUSB 24 Plus: Front Panel
AnywhereUSB® Plus User Guide
791

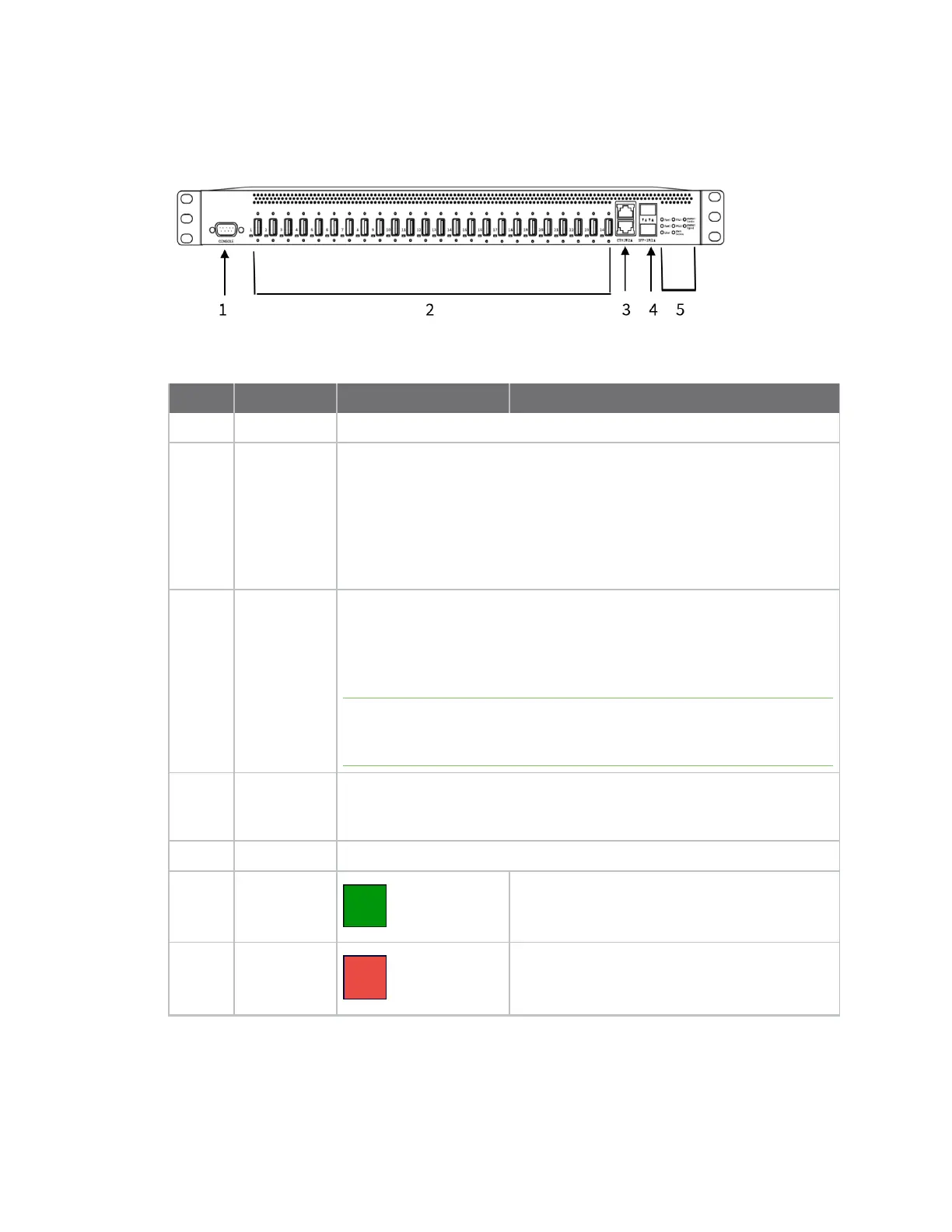

AnywhereUSB 24 Plus: Front Panel
Item Name Description
1
DB9 Console
Used to access a console using the RS232 DTEinterface.
2
USB ports
and
LEDs
Group of 24 USB ports and LEDS. The USB port supports 1.1, 2.0, and 3.1
USB devices.
The LED illuminates as follows, based on the speed of the USB device:
n
Yellow: 1.1 (Full speed)
n
Green: 2.0 (High speed)
n
Blue: 3.1 (Super speed)
3
ETH 1/2 Connect a Cat 7 STP Ethernet cable.
ETH1 is the primary network interface. See Step 5: Connect to the device
using an Ethernet LAN connection.
ETH2 is the secondary network interface. This is optional and used for
redundancy.
Note Digi recommends that you use either the Ethernet cable or the SFP+
module. If both the Ethernet cable and the SFP+ module are connected,
the SFP+ module will have priority.
4
SFP+ 1/2 Connect an SFP transceiver module for fiber connection, such as Finisar
Network FTLX8574D3BCL SFP+. The second SFP+ module is optional and
used for redundancy.
5
Fan1 LED The LED shows the status of Fan 1:
Solid green
The fan is running within normal range of use.
Solid red
The fan slows down or the Hub is overheating.
