Hardware AnywhereUSB 2 Plus: Back panel
AnywhereUSB® Plus User Guide
787

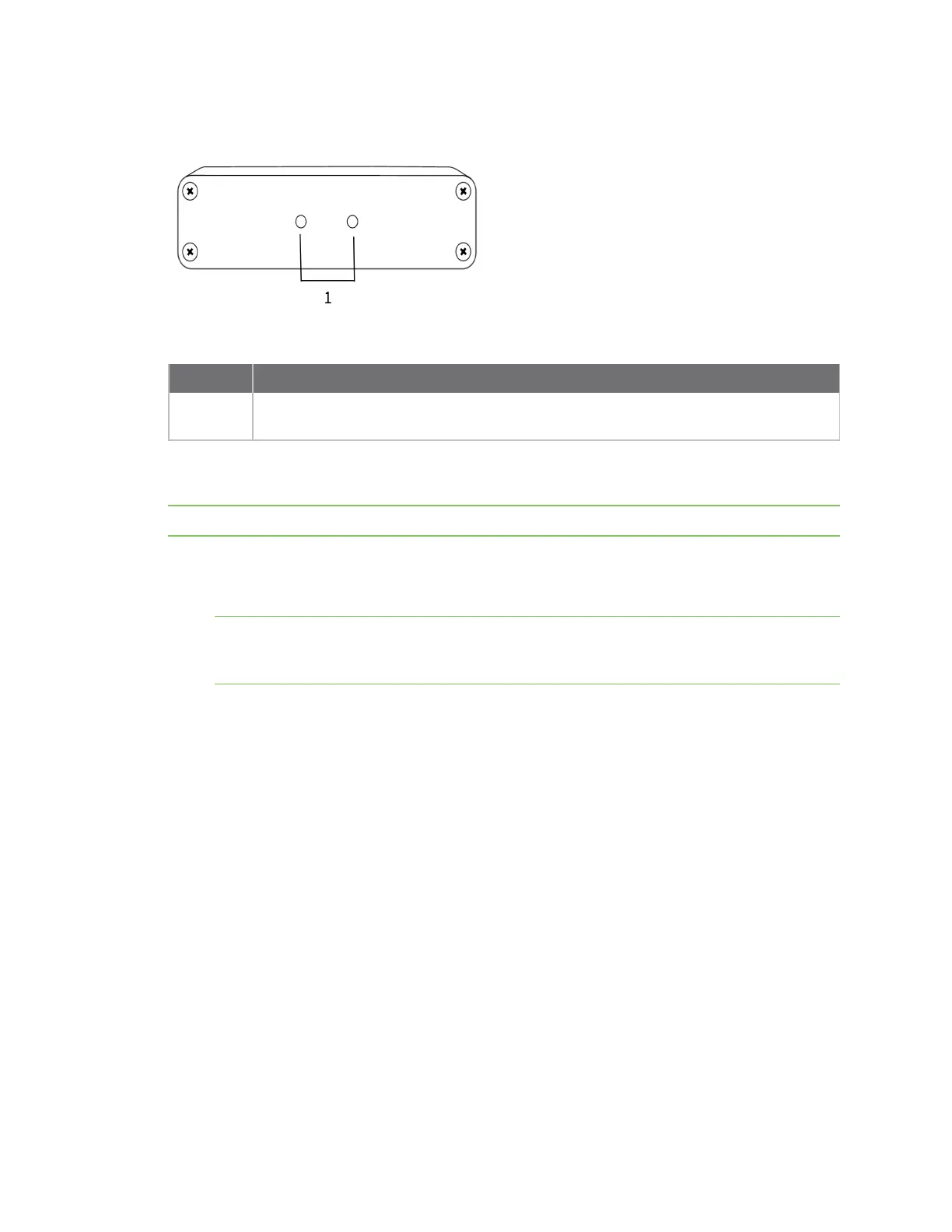

AnywhereUSB 2 Plus: Back panel
Item Description
1 Screw holes to attach a DIN rail clip.
See Attach a DIN rail clip (AnywhereUSB Plus 2-port ONLY).
Attach a DIN rail clip (AnywhereUSB Plus 2-port ONLY)
Note You can attach a DIN rail clip only to a AnywhereUSB Plus 2-port device.
Before you begin
n
You must purchase a DIN rail mounting kit: Digi PN 7000682.
Note Some kits may not have the required screws included. If this occurs, you will need to
separately purchase two screws of the following type: 4-40 x .250 Flat head, Phillips head, zinc-
plated screws.
n
You will need an appropriate Phillips-head screwdriver.
Attach the DINrail clip to the device
1. Remove required items from DINrail mounting kit:
n
DIN rail clip
n
Two 4-40 x .250 Flat head, zinc-plated screws.
2. Place the DIN rail clip on the rear panel of the device. Make sure the screw holes are aligned.
3. In each hole, use a Phillips-head screw driver to screw in a 4-40 x .250 Flat head, zinc-plated
screw.
4. Tighten the screws as needed to securely fasten the DINrail clip to the device.
5. Use the DIN rail clip to mount the device to a rail.
