2-10 CIC Pro™ 2026419-033E
Equipment overview
NOTE
Consult your sales representative or Technical Support for the latest supported
printers.
PRN 50-M digital writer
A PRN 50-M digital writer can be connected to the CIC Pro center to print alarm
graphs, control settings, waveforms, events, and trend data. The writer prints reports
and graphs on 2-inch wide paper.
The following controls, indicators, and connectors are located on the front and back
of the digital writer.
030A

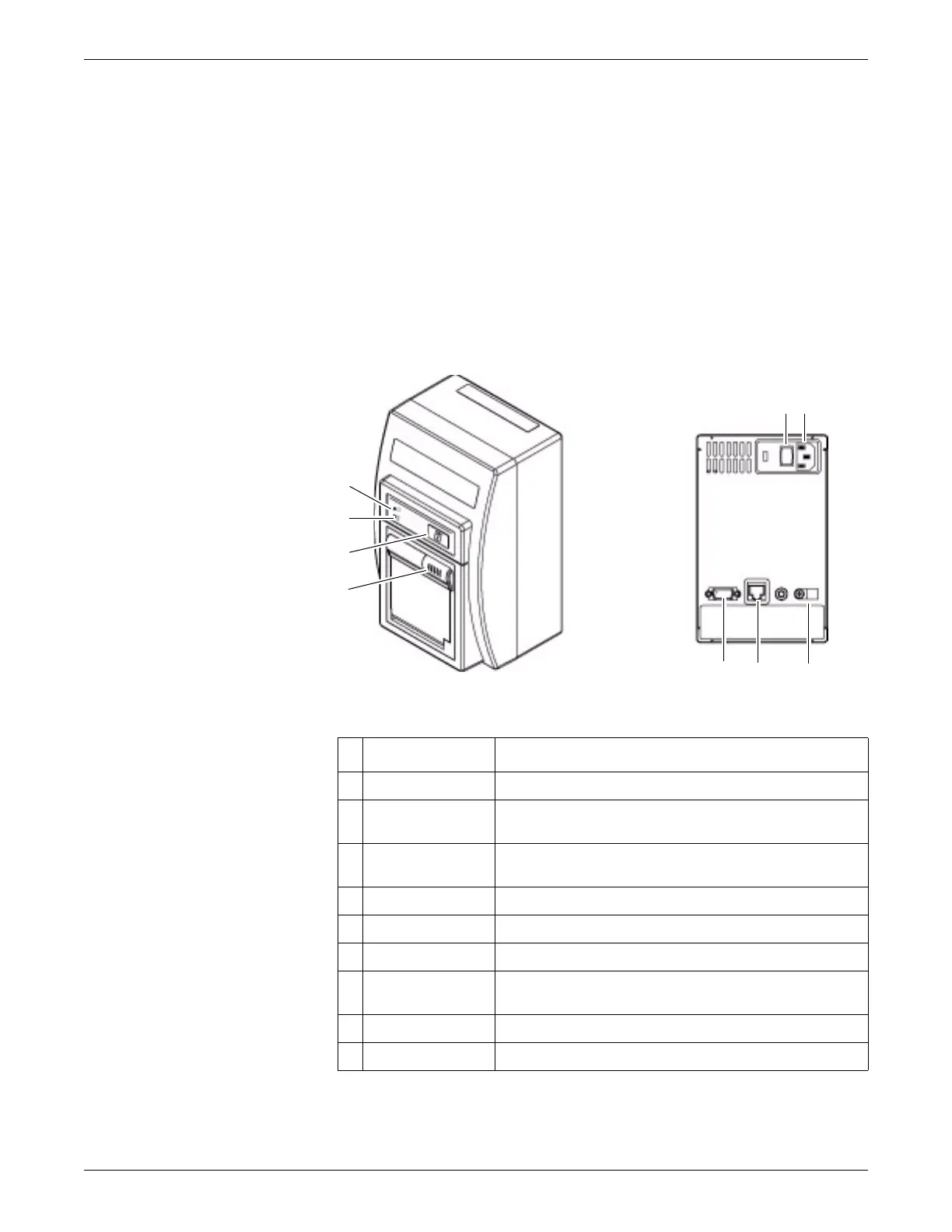

PRN 50-M digital writer: Front and back views
Item Function
1 Writer door button Press to open the door and replace the writer paper.
2 Graph stop button Press to stop printing a graph. Holding the button will generate a
self-test print.
3 Paper out indicator Illuminates when you need to replace the paper. See Change
writer paper on page 5-17.
4 Power indicator Illuminates when the writer is connected to a power source.
5 Power switch Press to turn on or turn off the writer.
6 Power connector Connect the writer’s power cable.
7 Power cable clamp Connect to the writer’s power cable. This prevents the cable
from being pulled out of the power connector.
8 M-port connector Connect to the CIC Pro center.
9 ASYNC COMM port Not used. This port may not be present on some models.
