GW Instek MFG-2000 Series User Manual

OPERATION
113

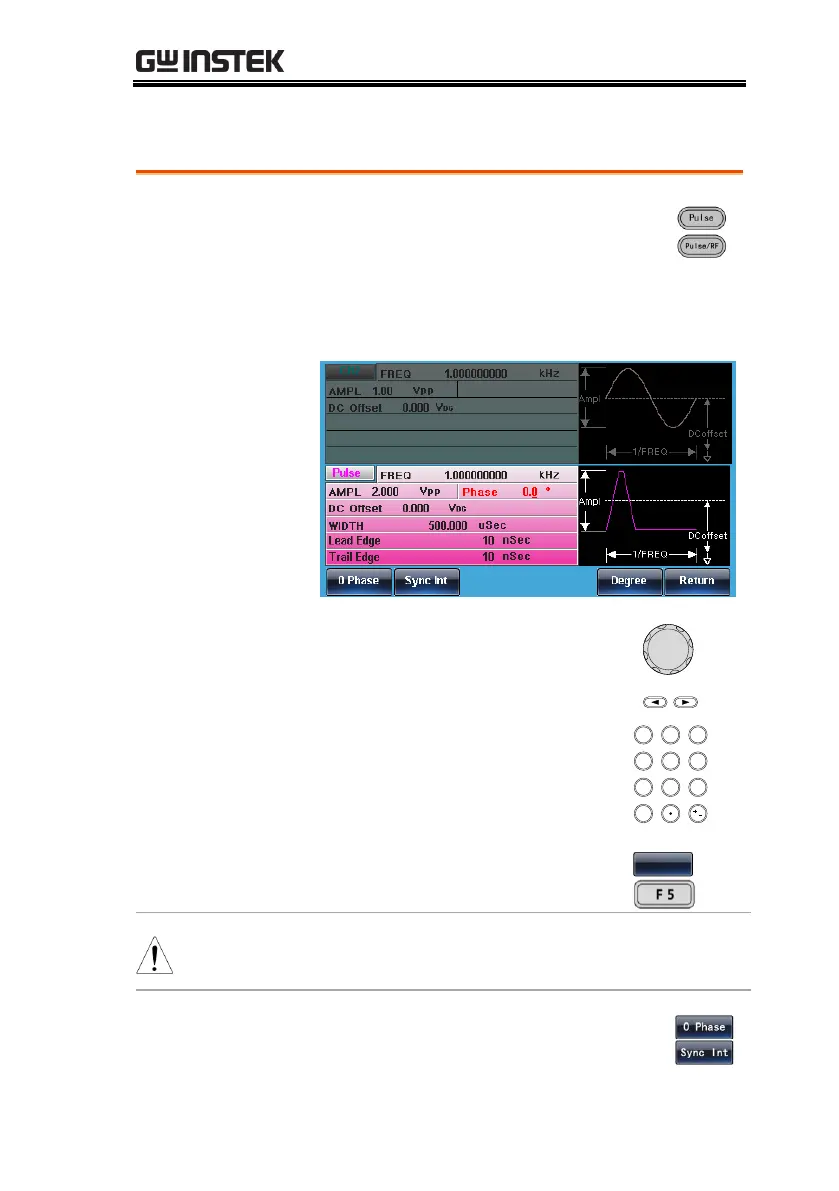

Setting the Phase
Panel Operation
1. Press the Pulse or Pulse/RF
key.
21XX
22XX
2. Phase setting. Select the corresponding channel
and then press F5(Phase).
3. There are two ways to set its
value :
a,Use the arrow keys and scroll
wheel
b, number pad to enter the Duty
range.

/


 




/


 



Press F5 (Degree) to choose the
units.
VD
There are two quick operations to enter the phase
setting interface：
The current channel phase is set to zero
Set the phase of CH1/CH2 to set zero
Synchronously
