GW Instek MFG-2000 Series User Manual

OPERATION
85

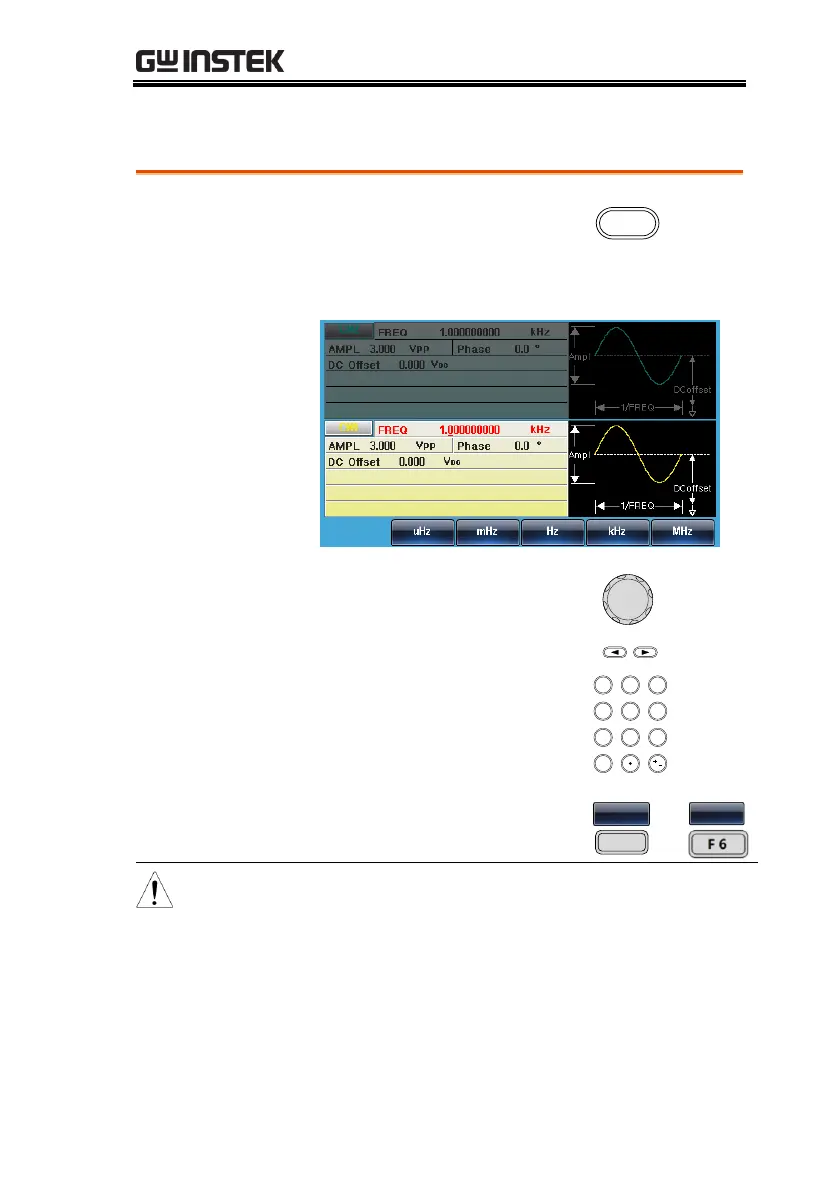

Setting the Frequency
Panel Operation
1. Press the FREQ/Rate key.
Q
2. The FREQ parameter will become highlighted
in the parameter window.
Parameter
settings
3. There are two ways to set its
value :
a,Use the arrow keys and
scroll wheel
b, number pad to enter the
Duty range.

/


 




/


 



Choose a frequency unit by
pressing F2 ~F6.
z

~
z
Range
Sine wave 1μHz~320MHz(max)
Square wave 1μHz~25MHz(max)
Pulse wave 1μHz~25MHz(max)
Ramp wave 1μHz~1MHz
