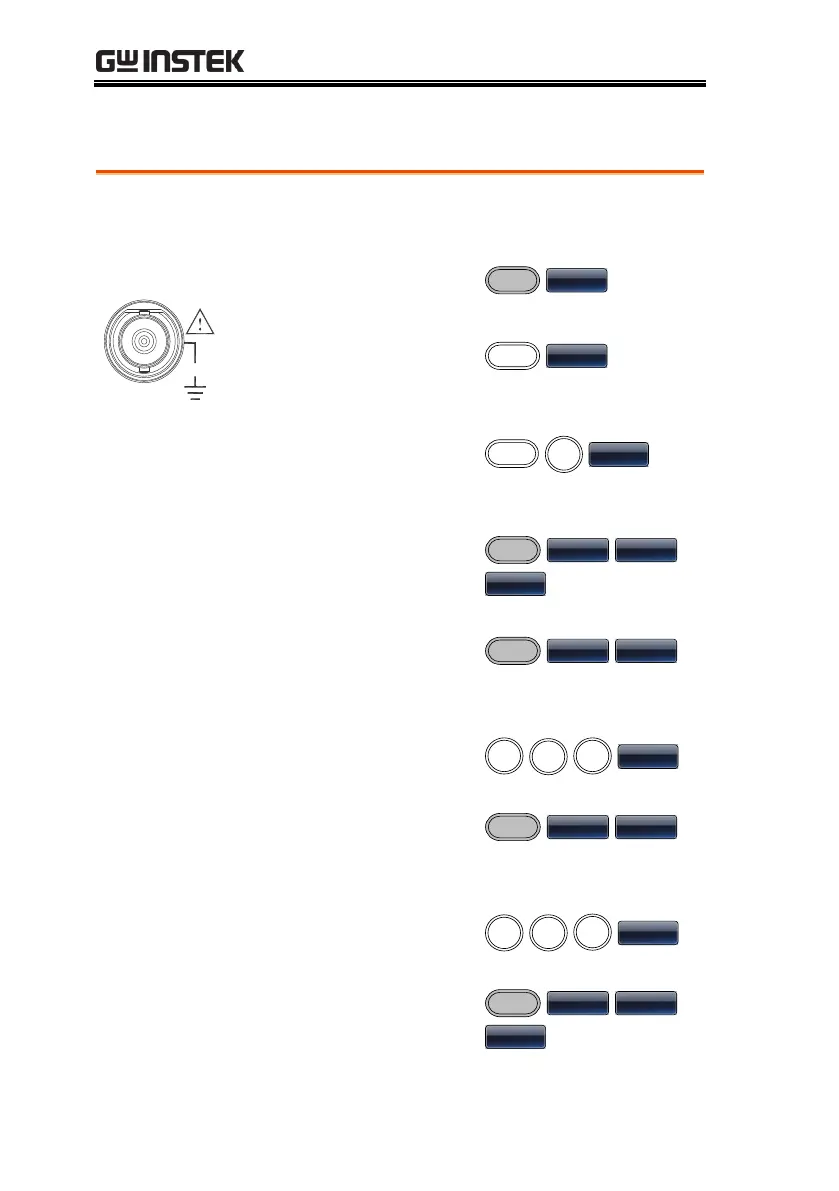

FM Modulation
Example: FM modulation. 100Hz modulating square wave. 1kHz
Sine wave carrier. 100 Hz frequency deviation. Internal Source.
Output:

     
     
     
    
   
     
  

     

     
     
     
1. Press the MOD key
and select FM (F2).


2. Press Waveform and
select Sine (F1).


Input: N/A
3. Press the Freq/Rate
key, followed by 1 +
kHz (F5).

kz
Q
4. Press the MOD key,
select FM (F2), Shape
(F4), Square (F2).

 ha
qa
5. Press the MOD key,
select FM (F2), FM
Freq (F3).

 q
6. Press 1 + 0 + 0 + Hz
(F2).


z

7. Press the MOD key,
select FM (F2), Freq
Dev (F2).

 qDv
8. Press 1 + 0 + 0 + Hz
(F3).


z

9. Press MOD, FM (F2),
Source (F1), INT (F1).




