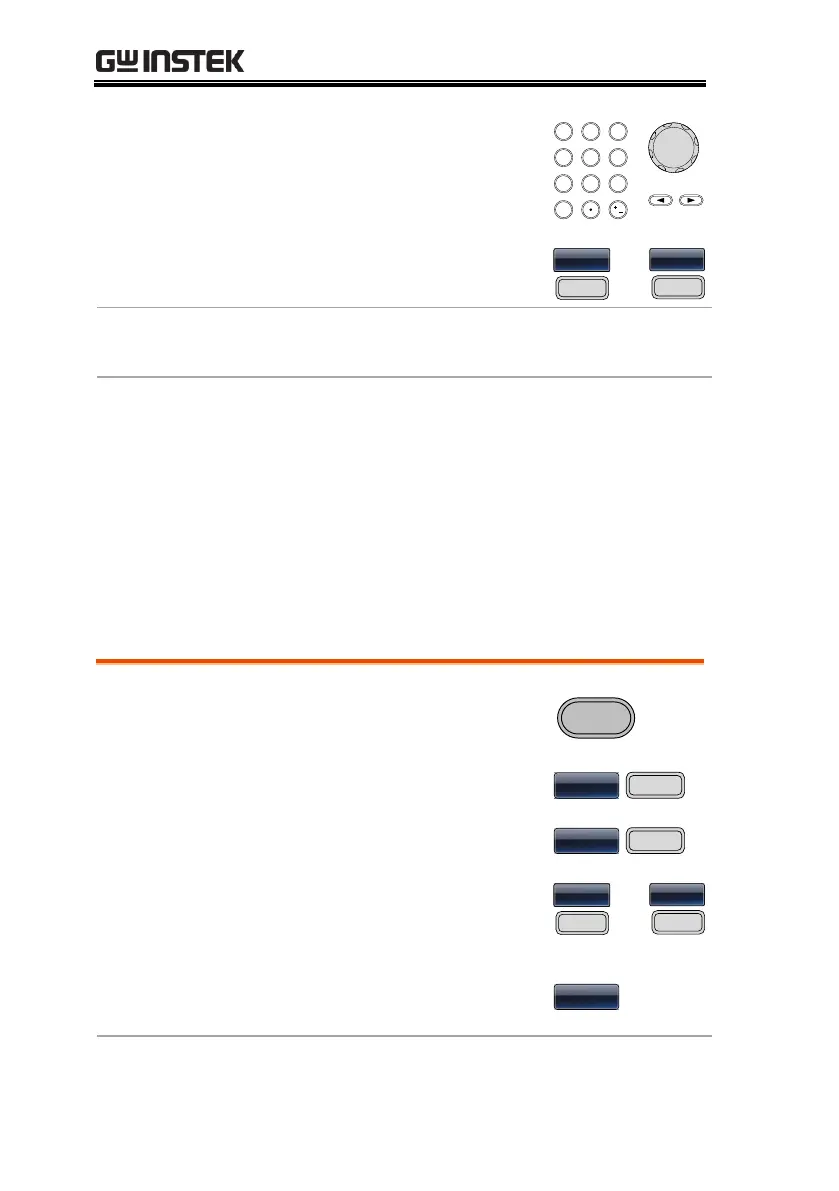

5. The arrow keys and scroll
wheel or number pad to enter
the FSK rate.

/


 



6. Press F1~F4 to select the
frequency unit.
z

~
kz

Range
FSK Rate
2mHz~1MkHz
Default
10Hz
Note
If an external source is selected, FSK Rate settings are
ignored.
FSK Source
The MFG-2000 accepts internal and external FSK sources, with
internal as the default source. When the FSK source is set to internal,
the FSK rate is configured using the FSK Rate setting. When an
external source is selected the FSK rate is equal to the frequency of
the Trigger INPUT signal on the rear panel.
Panel Operation
1. Press the MOD key.

2. Press F3 (FSK).
K

3. Press F1 (Source).


4. Press F1 (Internal) or F2
(External) to select the FSK
source.


~
EX

5. Press Return to return to the
previous menu.

Note
Note that the Trigger INPUT terminal cannot
configure edge polarity.
