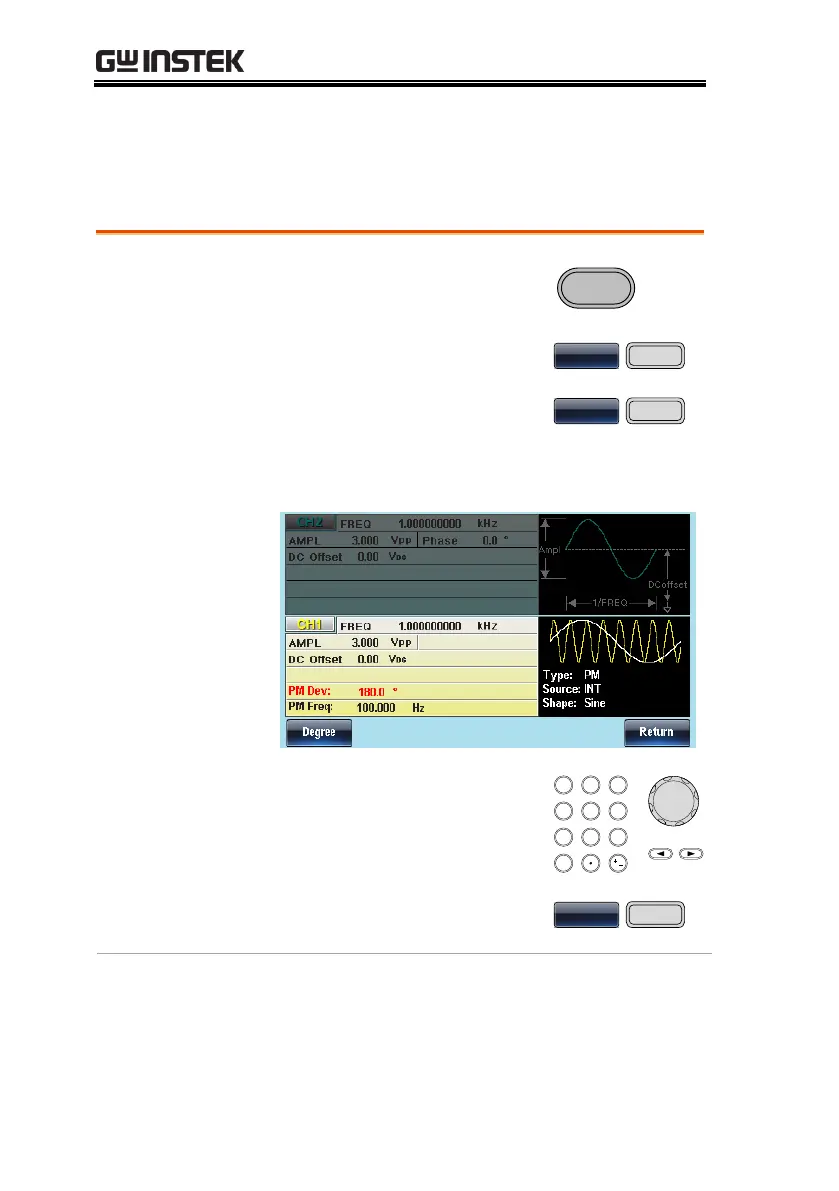

Phase Deviation
The maximum phase deviation depends on the the carrier wave
frequency and the modulated waveform.
Panel operation
1. Press the MOD key.

2. Press F4 (PM).


3. Press F2 (Phase Dev).
haDv

4. The Phase Dev parameter will become
highlighted in the waveform display area.
5. Use the arrow keys and scroll
wheel or number pad to enter
the phase deviation.

/


 



6. Press F1 to select the phase
units.
Dg

Range
Phase deviation/shift
0~360°
Default phase
180°
