GW Instek MFG-2000 Series User Manual

MODULATION
167

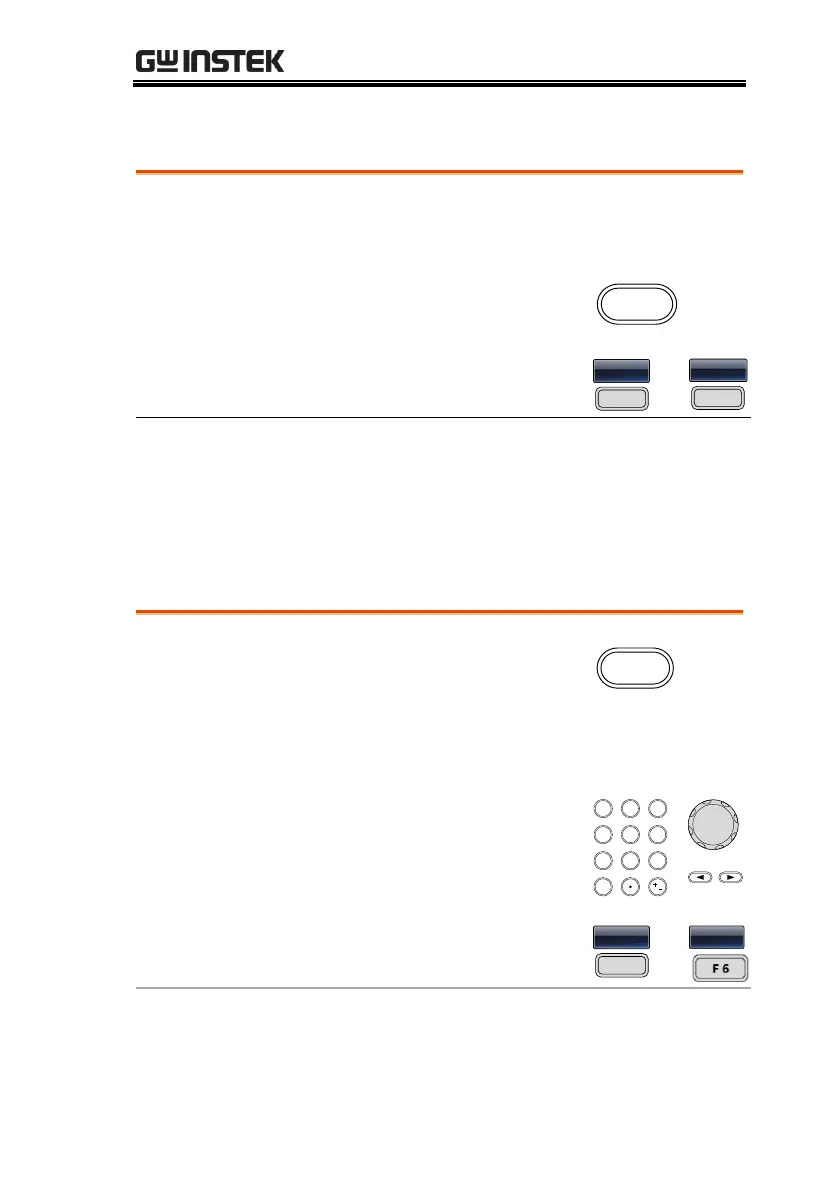

SUM Carrier Waveform
Background
The SUM carrier waveform is a sinewave by
default.
Panel Operation
1. Press the Waveform key.

2. Press F1~F5 to select the
carrier waveform.


~


Range
Carrier Waveform
Sine, square, pulse, ramp
and noise wave.
SUM Carrier Frequency
The maximum carrier frequency depends on the selected carrier
waveform. The default carrier frequency is 1kHz.
Panel Operation
1. Press the FREQ/Rate key to
select the carrier frequency.
Q
2. The FREQ parameter will become highlighted
in the parameter window.
3. Use the arrow keys and scroll
wheel or number pad to enter
the frequency.

/


 



4. Press F2 ~ F6 to select the
frequency units.
z

~
z
Range
Carrier Waveform
Carrier Frequency
Sine wave
1μHz~60MH(max)
Square wave
1μHz~25MHz(max)
