GW Instek MFG-2000 Series User Manual

QUICK REFERENCE
35
4. Press the AMPL key
then 5 +VPP (F6).

V

5. Press the Output key.

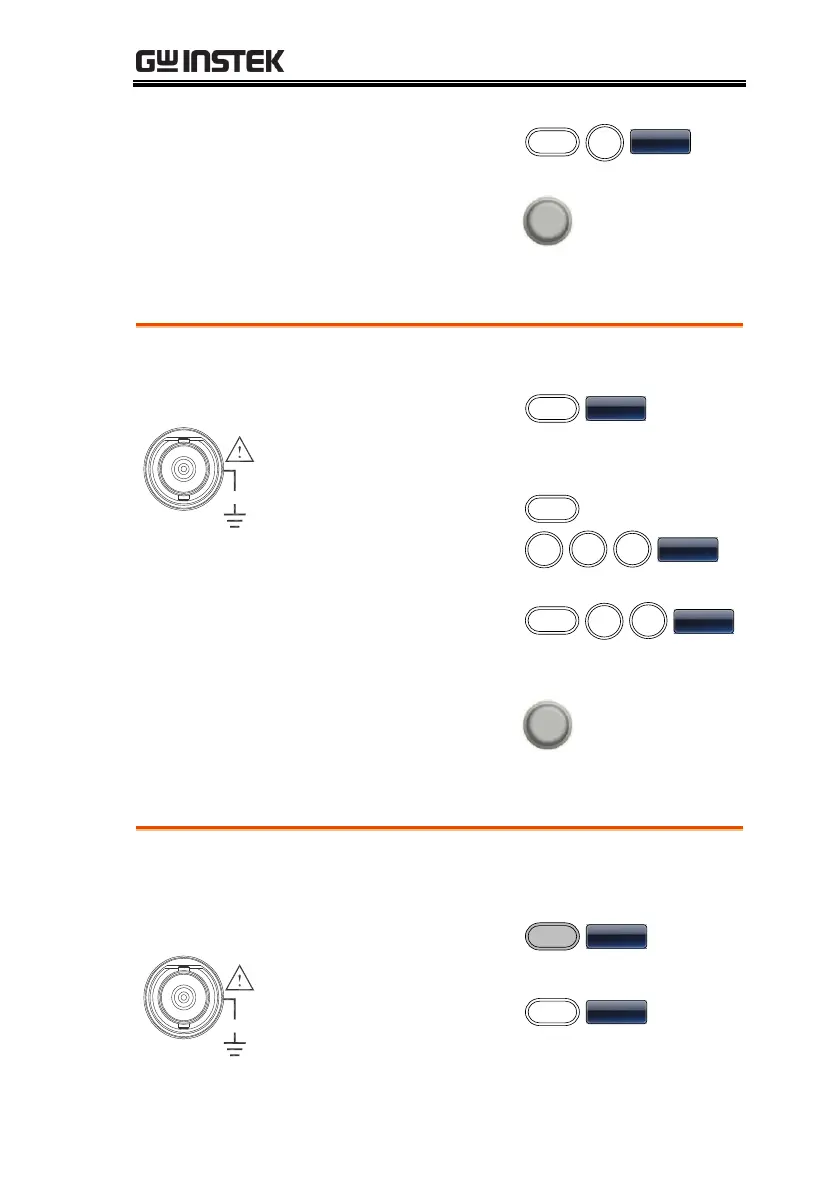

Sine Wave
Example: Sine Wave, 10Vpp,100kHz
Output:

     
     
     
    
   
     
  

     

     
     
     
Input: N/A
1. Press the Waveform
key and select Sine
(F1).


2. Press the Freq/Rate
key, followed by 1 + 0
+0 + kHz (F5).
Q

 
kz
3. Press the AMPL key,
followed by 1 + 0
+VPP (F6).


V

4. Press the output key.
AM Modulation
Example: AM modulation. 100Hz modulating square wave. 1kHz
Sine wave carrier. 80% modulation depth.
Output:

     
     
     
    
   
     
  

     

     
     
     
Press the MOD key and
select AM (F1).


1. Press Waveform and
select Sine (F1).


