ARBITRARY WAVEFORMS
219

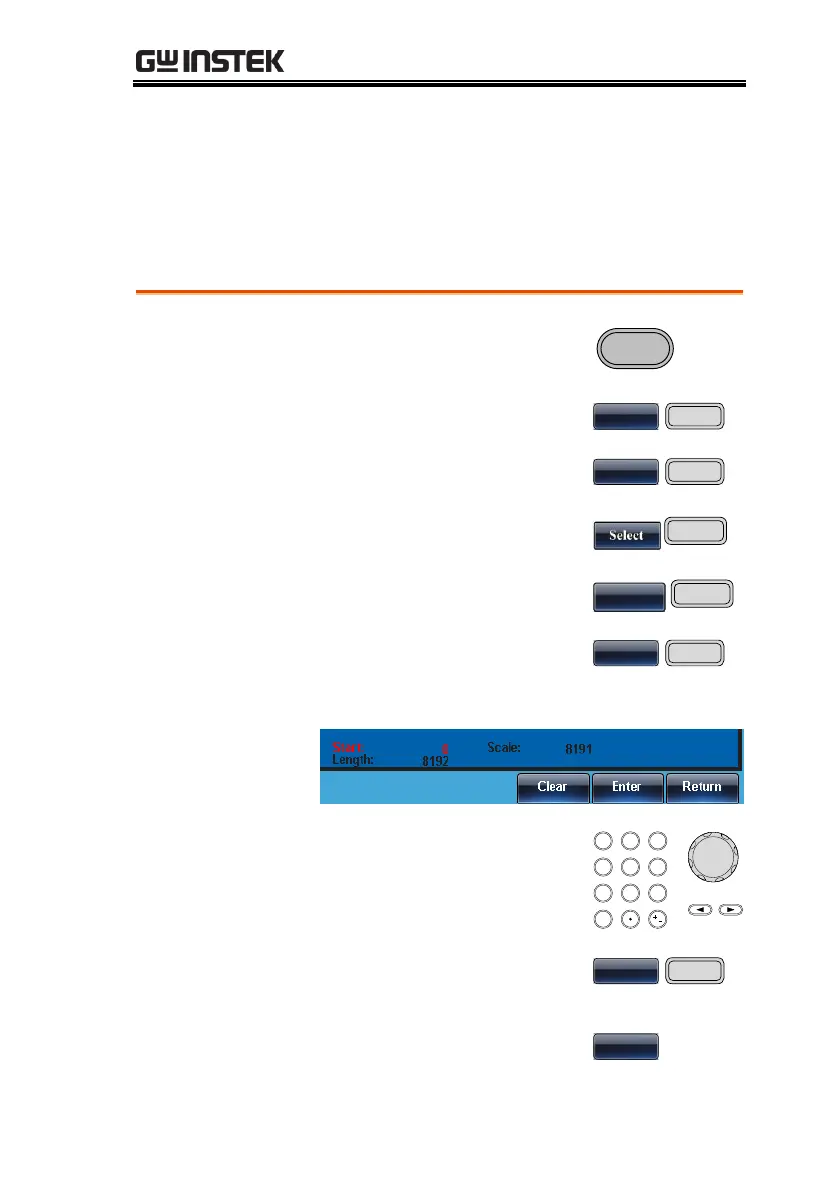

Inserting Built-In Waveforms
The MFG-2000 includes 66 common waveforms, such as comon,
math waveforms, windowing functions and engineering waveforms.
Create an AbsAtan Waveform
Panel Operation
1. Press the ARB key.

2. Press F3(Built in).
B

3. Press F4(Wave).
av

4. Press F5(Select)

5. Press F6(Return)


6. Press F1(Start).
a

7. The Start parameter will become highlighted.
8. Use the arrow keys and scroll
wheel or number pad to enter
the output phase.

/


 



9. Press F2 (Enter) to confirm
the Start point.
E

10. Press Return to return to the
previous menu.

