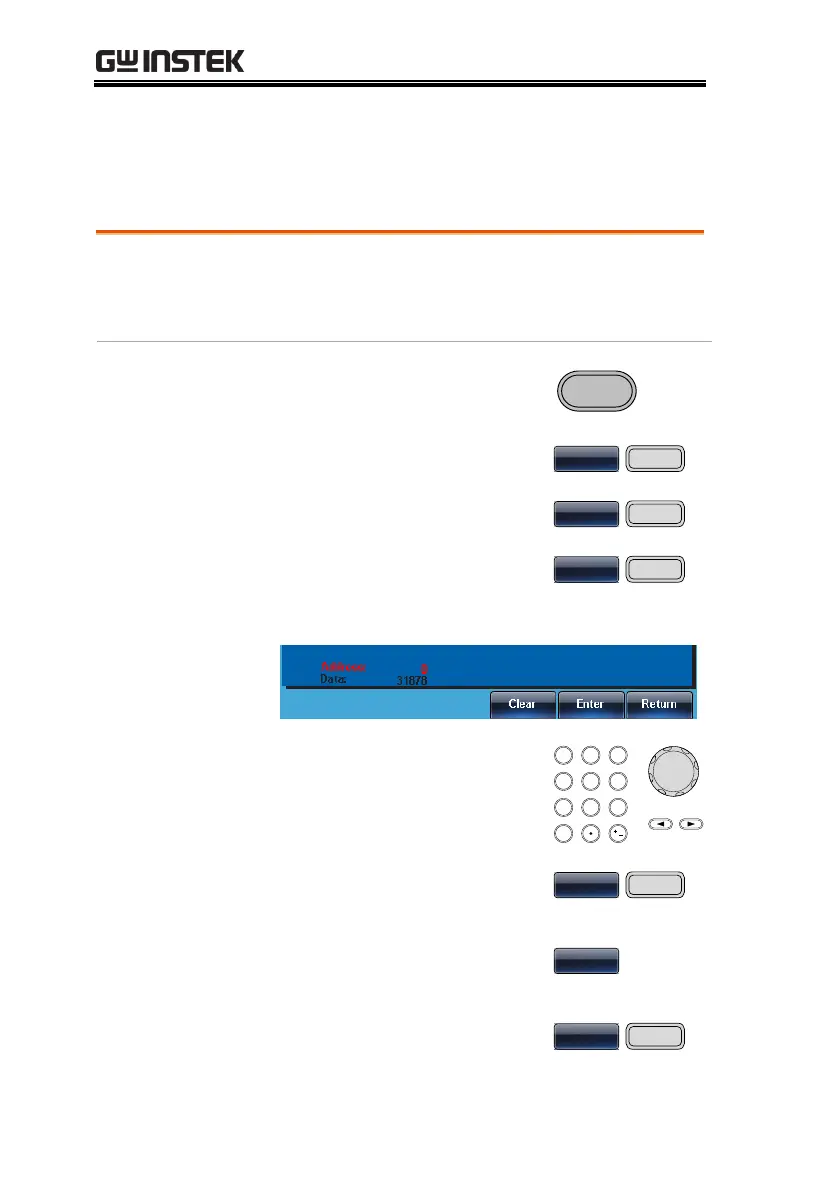

Editing an Arbitrary Wavefrom
Adding a Point to an Arbitrary Waveform
Background
The MFG-2000 has a powerful editing function
that allows you to create points or lines anywhere
on the waveform.
Panel Operation
1. Press the ARB key.

2. Press F2 (Edit).
Ed

3. Press F1 (Point).


4. Press F1 (Address).
dd

5. The Address parameter becomes red.
6. Use the arrow keys and scroll
wheel or number pad to enter
the Address value.

/


 



7. Press F5 (Enter) to save the
settings.
Ed

8. Press Return to return to the
previous menu.

9. Press F2 (Data).
Daa

