OPERATION
91
Sine Waveform

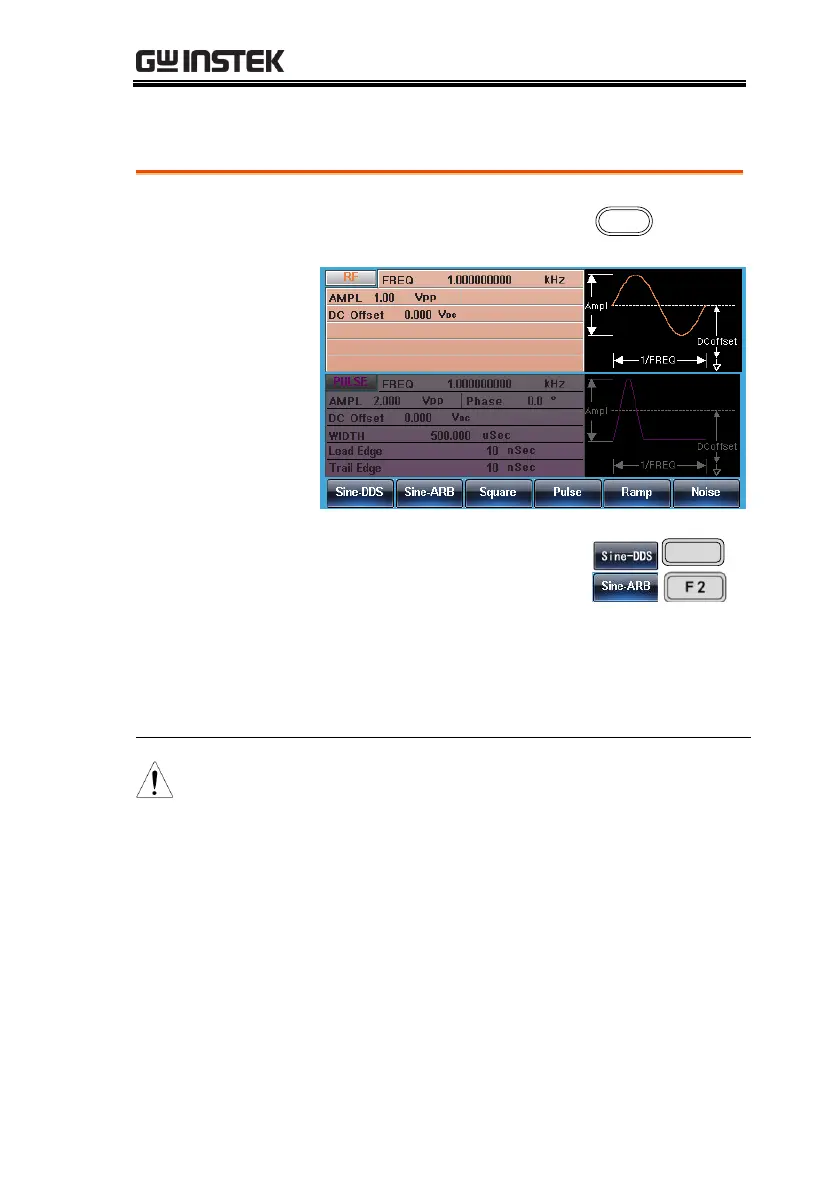

1. Press the Waveform key.
2. Press F1 (Sine-DDS) to create
a Sine-DDS waveform or
Press F2 (Sine-ARB) to create
a Sine-ARB waveform.
3. To set parameter
Load/Frequency/Amplitude/DC Offset,
please see page 97 - 101.
The modulation function for Sine-DDS, RF are
AM,ASK,FM,FSK,PM,PSK and its upper frequency
limit 160MHz (MFG-2XXXMF) / 320MHz (MFG-
2XXXMR).
The modulation function for Sine-ARB,RF are
FM,FSK,PM,PWM and it upper frequency limit
depends on models. Please refer to CH1 of chapter
"specification" for detailed upper frecuency limit.
