GW Instek MFG-2000 Series User Manual

MFG-2000 Series User Manual
238

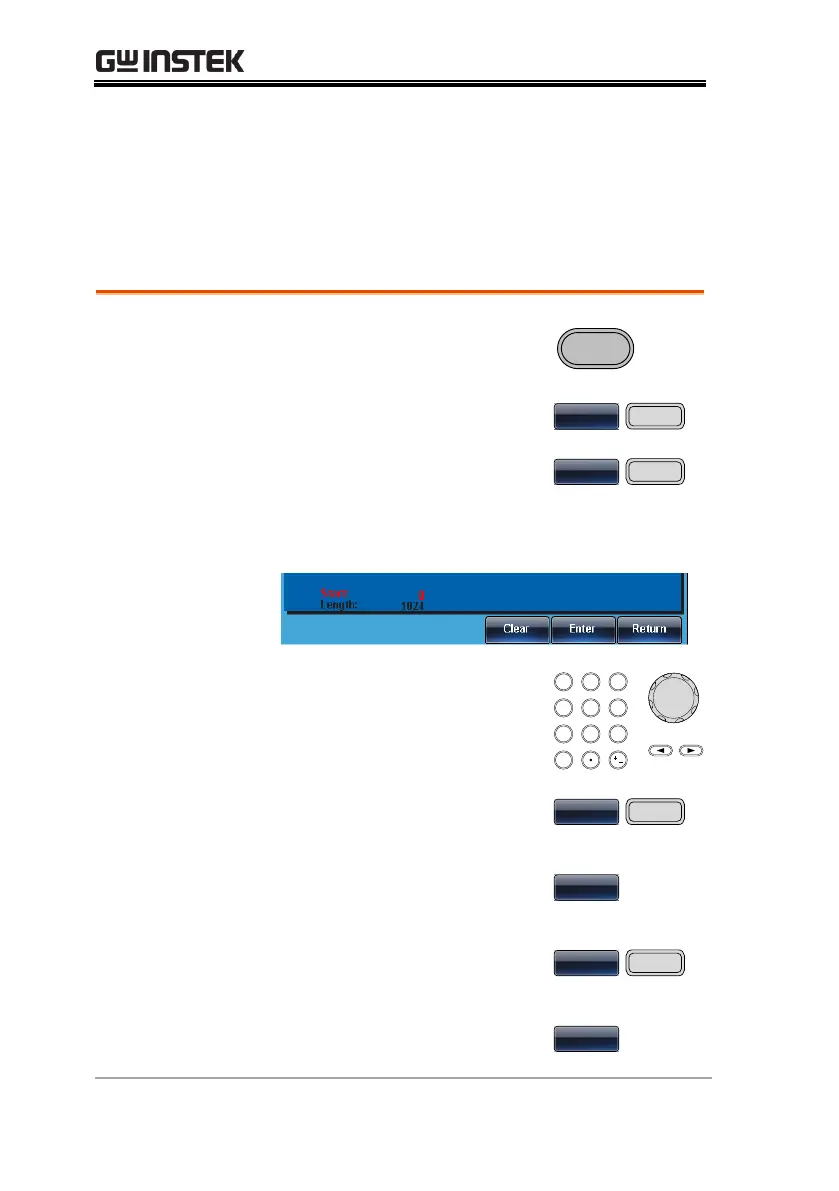

Ouput an Arbitrary Waveform
The arbitrary waveform generator can output up to 16k points
(2~16384).
Ouput Arbitrary Waveform
Panel Operation
1. Press the ARB key.

2. Press F6 (Output).
O

3. Press F1 (Start).
a

4. The Start property will become highlighted in
red.
5. Use the arrow keys and scroll
wheel or number pad to enter
the Start address.

/


 



6. Press F5 (Enter) to confirm
the start point.
E

7. Press Return to return to the
previous menu.

8. Repeat steps 4~7 for Length
(F2).
gh

9. Press Return to return to the
previous menu.

