GW Instek MFG-2000 Series User Manual

QUICK REFERENCE
39
10. Press the Output key.

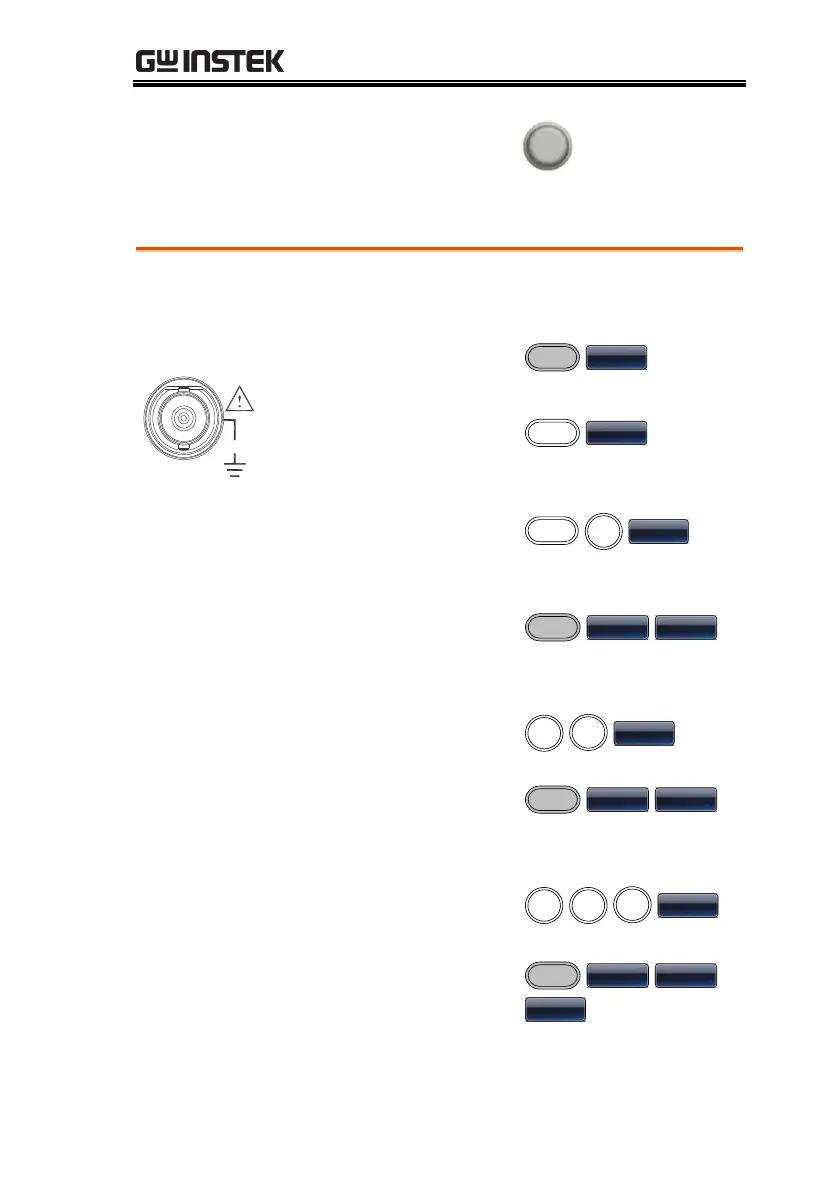

FSK Modulation
Example: FSK modulation. 100Hz Hop frequency. 1kHz Carrier
wave. Sine wave. 10 Hz Rate. Internal Source.
Output:

     
     
     
    
   
     
  

     

     
     
     
1. Press the MOD key
and select FSK (F3).

K
2. Press Waveform and
select Sine (F1).


Input: N/A
3. Press the Freq/Rate
key, followed by 1 +
kHz (F5).

kz
Q
4. Press the MOD key,
select FSK (F3), FSK
Rate (F5).

K Ka
5. Press 1 + 0 + Hz (F5).


z
6. Press the MOD key,
select FSK (F3), Hop
Freq (F5).

K q
7. Press 1 + 0 + 0 + Hz
(F3).


z

8. Press MOD, FSK (F3),
Source (F1), INT (F1).

K 

