GW Instek MFG-2000 Series User Manual

DUAL CHANNEL OPERATION
215

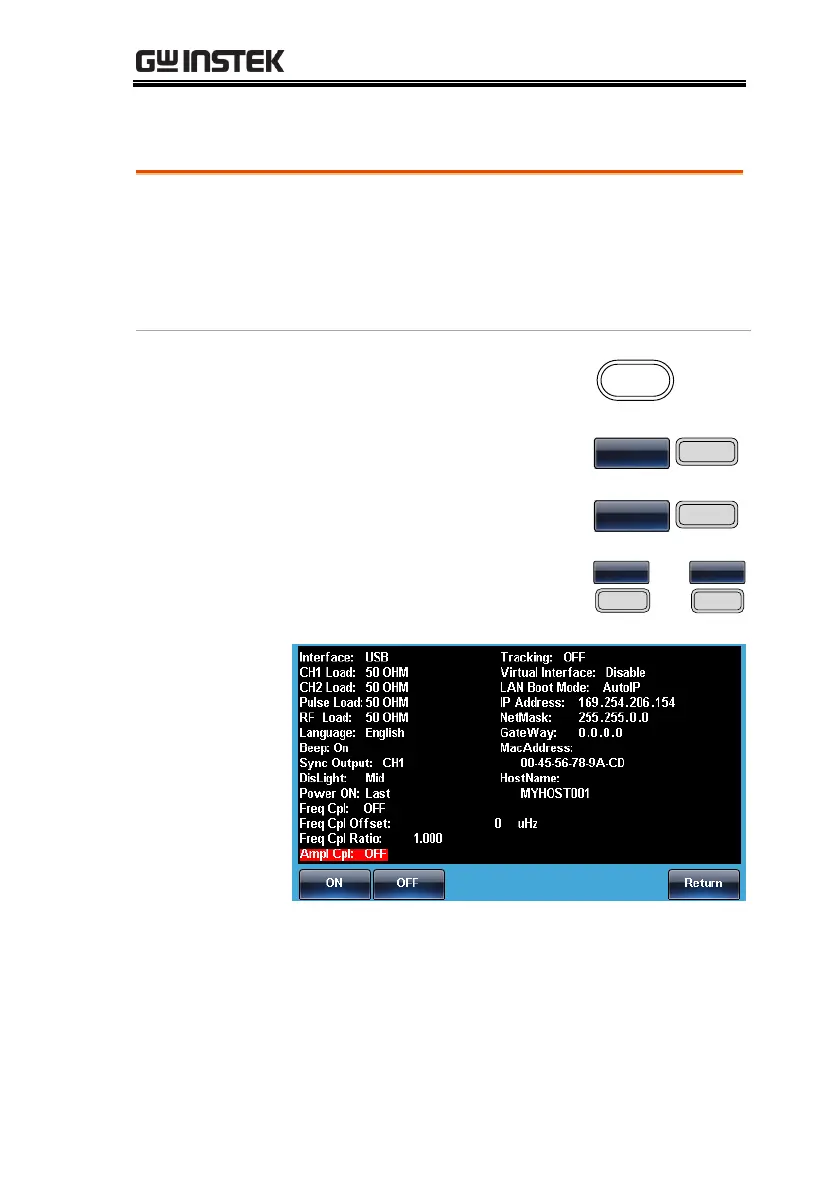

Amplitude Coupling (For 22XX only)
Background
Amplitude coupling couples the amplitude of one
channel to the other channel. When the amplitude
settings for one channel are changed, those same
settings are automatically reflected in the other
channel.
Panel Operation
1. Press the UTIL key.

2. Press F5 (Dual Ch).
Dah

3. Press F2 (Ampl Cpl).


4. Press F1 to turn amplitude
coupling ON or F2 to turn
amplitude coupling OFF.
O

~
O

