GW Instek MFG-2000 Series User Manual

MFG-2000 Series User Manual
168
Pulse wave
1μHz~25MHz(max)
Ramp wave
1μHz~1MHz
Default frequency
1 kHz
SUM Waveform
The function generator can accept internal and external sources. The
MFG-2000 includes sine, square, pulse, UpRamp and DnRamp as
internal sources. The default waveform is sine.

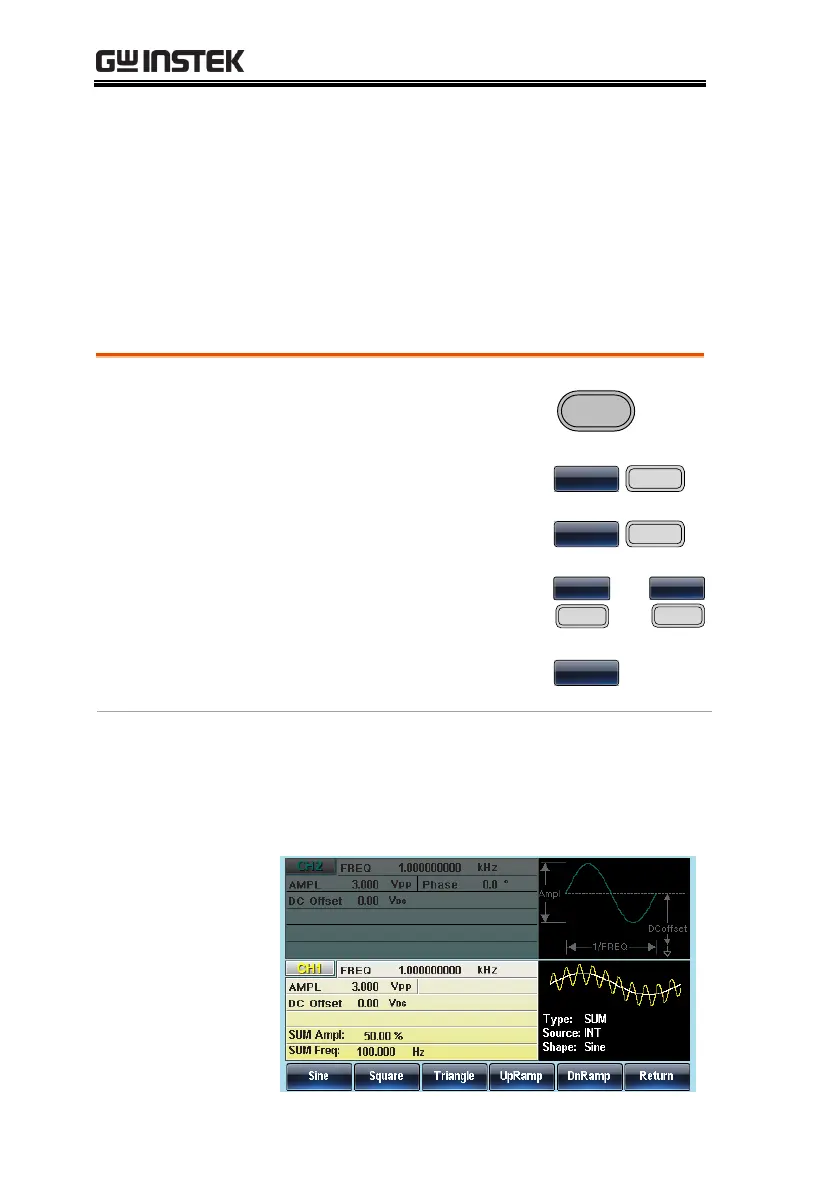

Panel Operation
1. Press the MOD key.

2. Press F5 (SUM).


3. Press F4 (Shape).
ha

4. Press F1~F5 to select the
source waveform.


~
Da

5. Press Return to return to the
previous menu.

Range
Square wave
50% Duty cycle
Up ramp
100% Symmetry
Triangle
50% Symmetry
Down ramp
0% Symmetry
