GW Instek MFG-2000 Series User Manual

MODULATION
143
FSK Carrier Frequency
The maximum carrier frequency depends on the carrier shape. The
default carrier frequency for all carrier shapes is 1kHz. The voltage
level of the Trigger INPUT signal controls the output frequency
when EXT is selected. When the Trigger INPUT signal is logically
low the carrier frequency is output and when the signal is logically
high, the hop frequency is output.

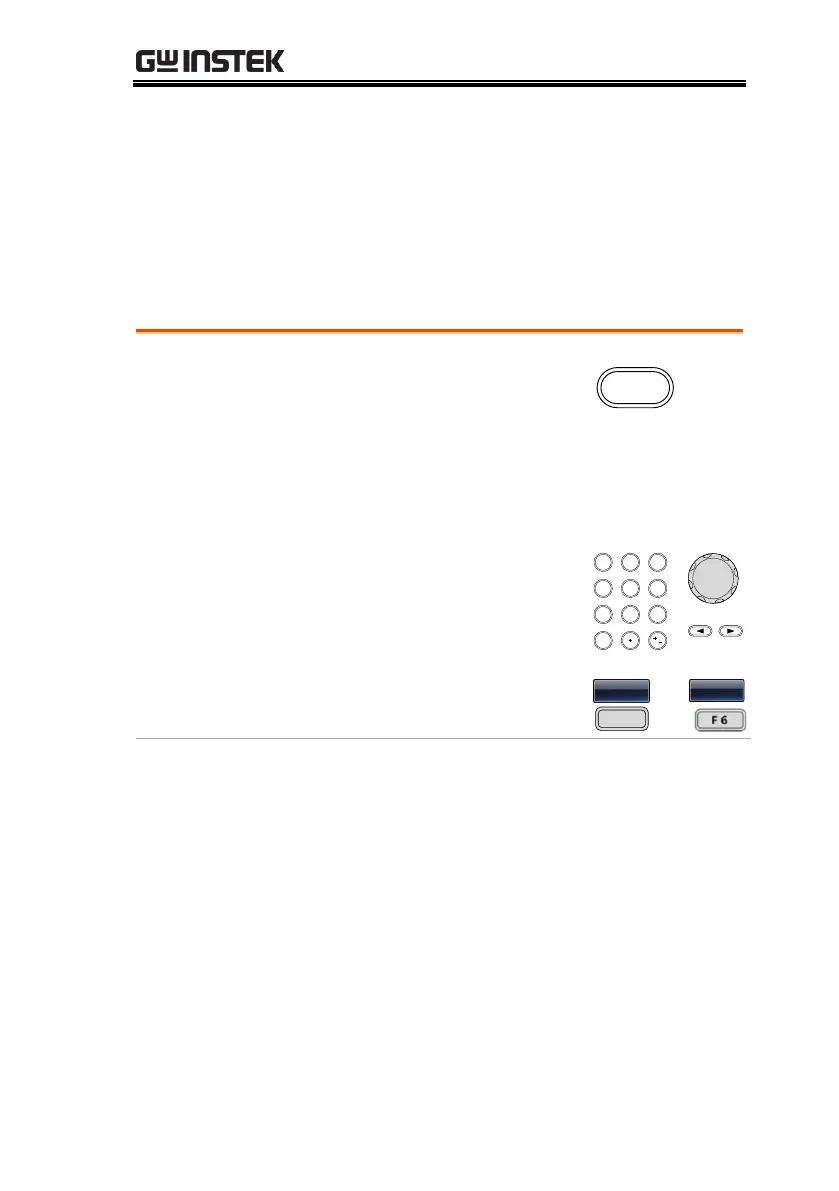

Panel Operation
1. Press the FREQ/Rate key to
select the carrier frequency.
Q
2. The FREQ parameter will become highlighted
in the parameter window.
3. Use the arrow keys and scroll
wheel or number pad to enter
the carrier frequency.

/


 



4. Press F2~F6 to select the FSK
frequency units.
z

~
z
Range
Carrier Shape
Carrier Frequency
Sine wave
1μHz~320MHz(max)
Square wave
1μHz~25MHz(max)
Ramp wave
1μHz~1MHz
Pulse wave
1μHz~25MHz(max)
Default frequency
1kHz
