Phase Modulation(PM)
A PM waveform is produced from a carrier waveform and a
modulating waveform. The phase of the carrier waveform is
modulated by the magnitude of the modulating waveform. When
using the function generator, only one type of modulated waveform
can be created at any one time for the selected channel.

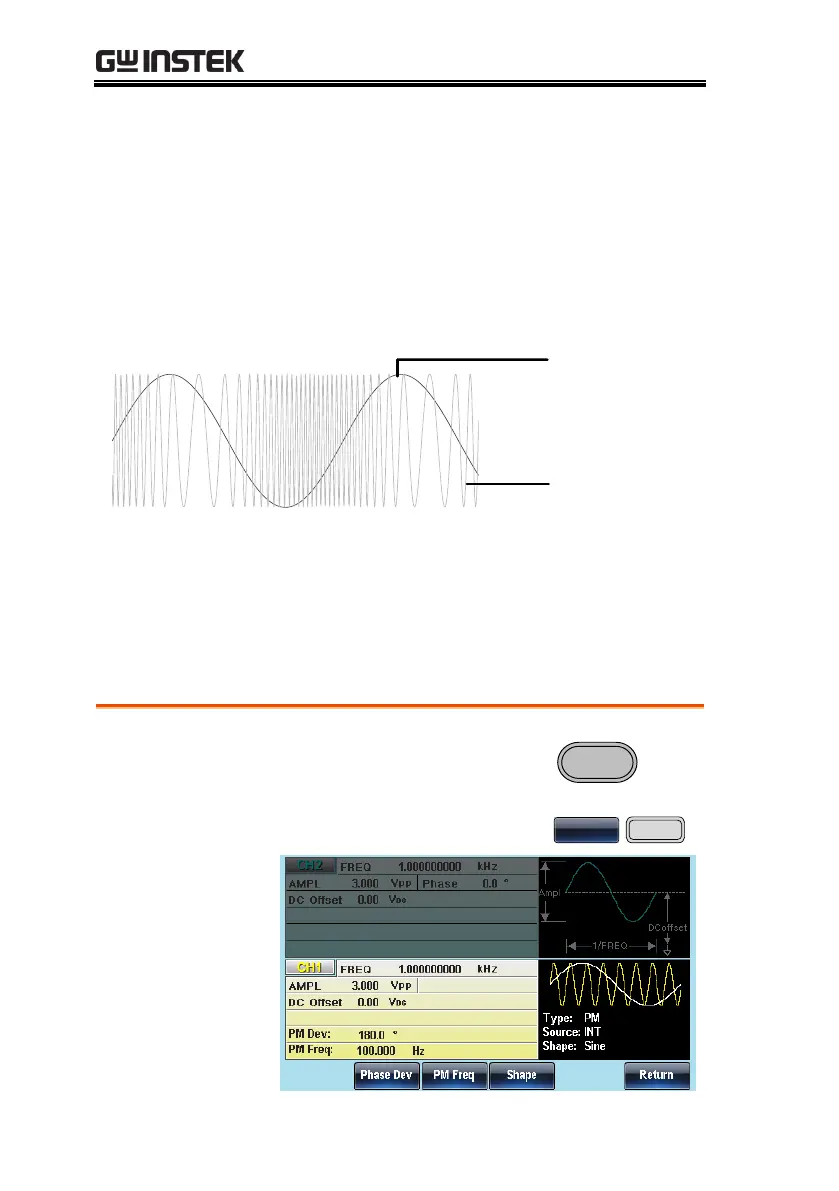

Modulated Carrier
Waveform
Modulating
waveform
Selecting Phase Modulation (PM)
When selecting PM, the current setting of the carrier frequency, the
amplitude modulation frequency, output, and offset voltage must
be considered.
Panel Operation
1. Press the MOD key.

2. Press F4 (PM).


