GW Instek MFG-2000 Series User Manual

MFG-2000 Series User Manual
34

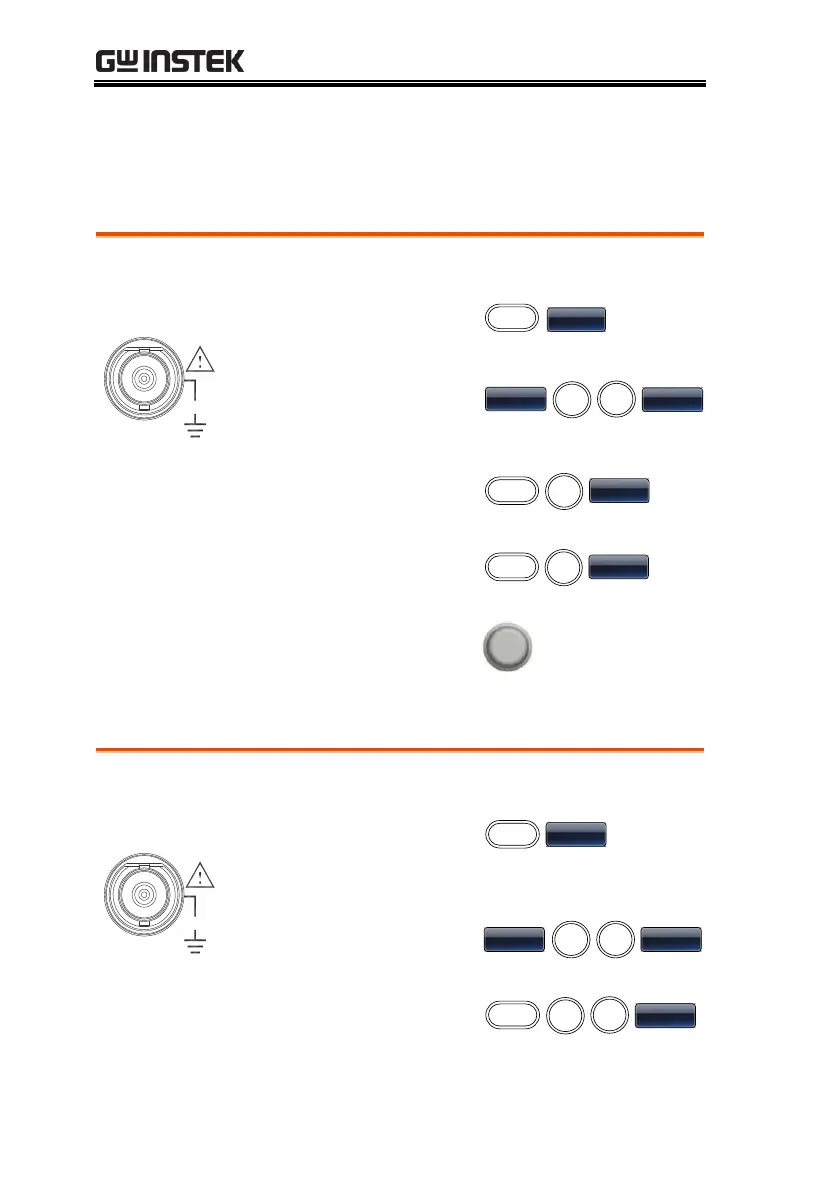

Selecting a Waveform
Square Wave
Example: Square wave, 3Vpp, 75% duty cycle, 1kHz.
Output:

     
     
     
    
   
     
  

     

     
     
     
1. Press Waveform and
select Square (F2).

qa
2. Press Duty (F1), 7 + 5
+ %(F5).
D


%
Input: N/A
3. Press Freq/Rate, 1 +
kHz (F5).

kz
Q
4. Press AMPL followed
by, 3 + VPP (F6).

V

5. Press the Output key.
Ramp Wave
Example: Ramp Wave, 5Vpp, 10kHz, 50% Symmetry.
Output:

     
     
     
    
   
     
  

     

     
     
     
1. Press the Waveform
key, and select Ramp
(F5).

a
2. Press SYM(F1), 5 + 0
+%(F5).

%Y

Input: N/A
3. Press the Freq/Rate
key then 1 + 0 + kHz
(F5).


kz
Q
