GW Instek MFG-2000 Series User Manual

MFG-2000 Series User Manual
208

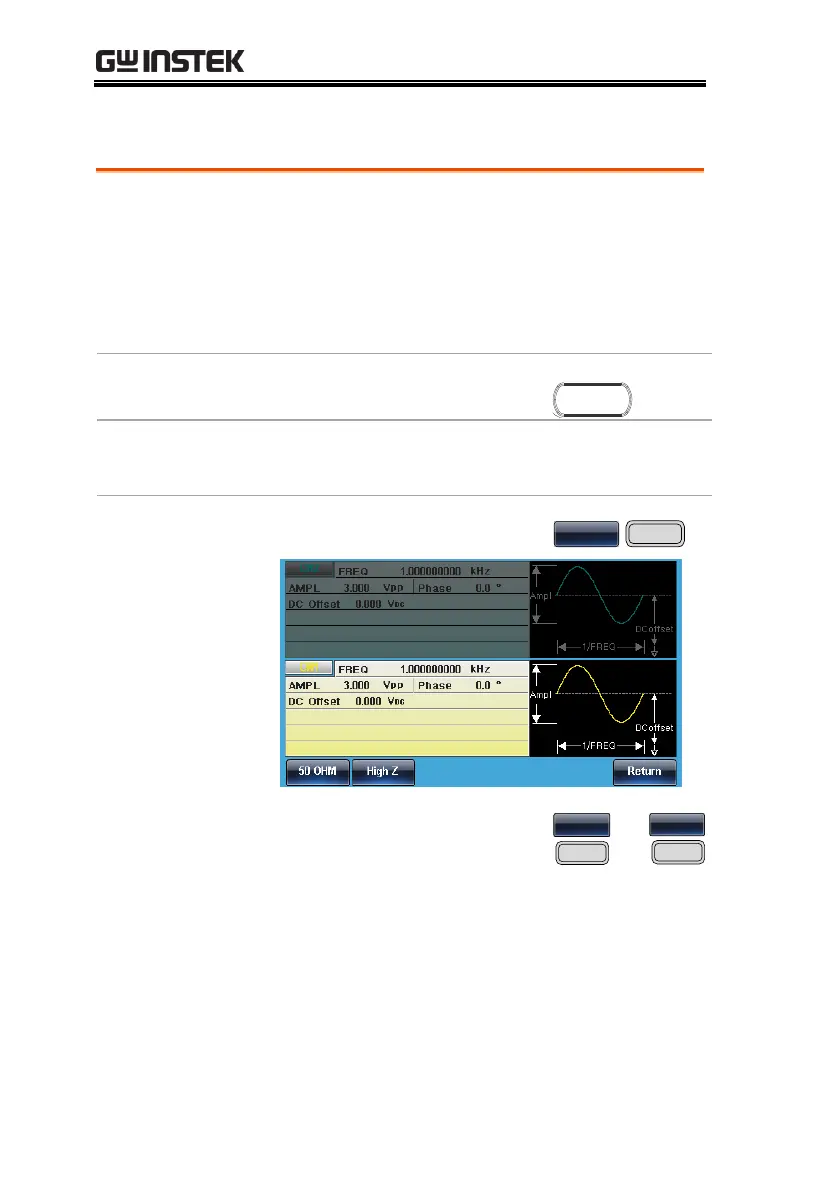

Output Impedance
Background
The MFG-2000 has selectable output impedances:
50Ω or high impedance. The default output
impedance is 50Ω. The output impedances are to
be used as a reference only. If the actual load
impedance is different to that specified, then the
actual amplitude and offset will vary accordingly.
Panel Operation
1. Press the CH1/CH2 key.
  
   
        
  
    
    
      
     










/
  

  

        
M F G - 2 5 3 2 M P
      
   
 
 
   
            
    
Note
The load function can only be used if the ARB, MOD,
SWEEP or BURST functions are not active.
2. Press F1 (Load).
ad

3. Select F1 (50 OHM) or
F2(High Z) to select the
output impedance.
O

~
ghZ

