10.5.4 Working with delta triggers
With the delta trigger, you can define a "corridor" a physical signal must not leave.
Example:
You want to observe an actual speed value. This value must not exceed a lower and an upper limit.

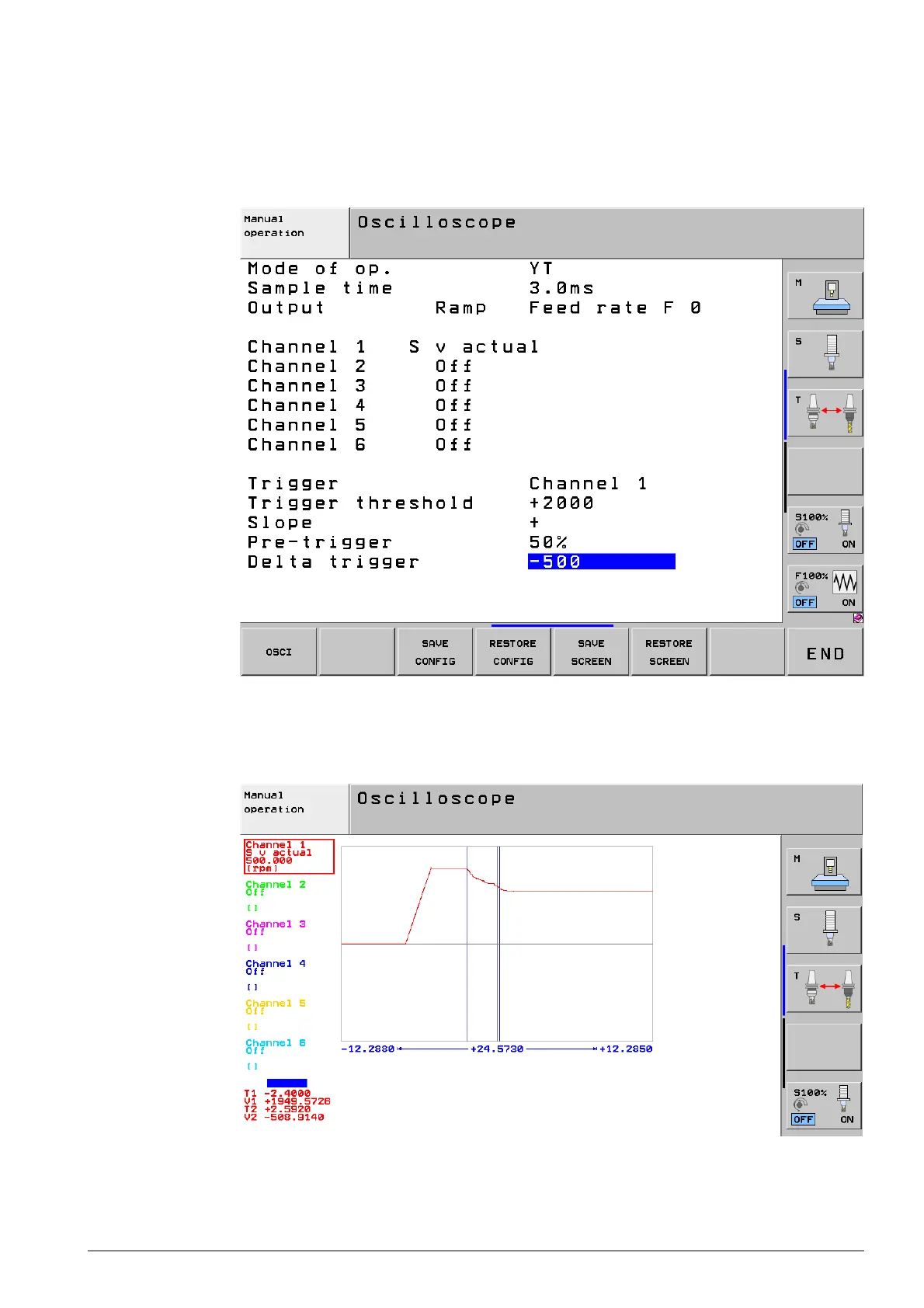

8 For example, set the oscilloscope like this:
8 Start the oscilloscope recording.
8 Ask the operator to mill a workpiece.
8 Now you can see, whether or not the "speed corridor" is observed.
