February 2012 8 – 89
8.5 Log entries at program termination
If an NC program is not terminated properly but aborted before completion due to an error, additional
information is entered in the log:
îš„ Path and name of the aborted NC program
îš„ Line number of the NC program at program termination
îš„ ACTUAL position at program termination
îš„ Offsets to machine datum (preset)
îš„ Possibly set datum shifts
îš„ Tool number
îš„ Tool length, tool radius, etc.

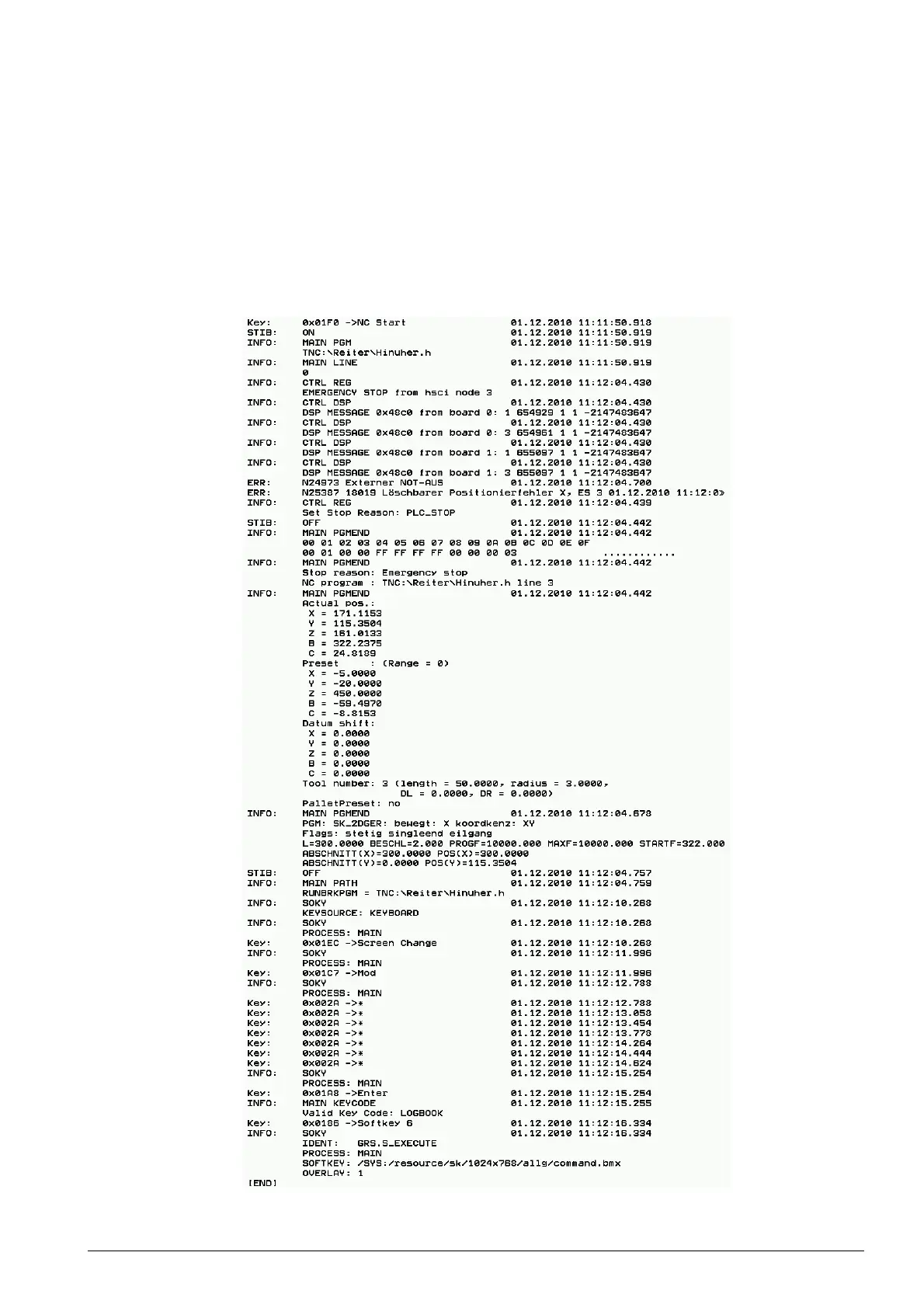

Figure: Excerpt from a log at program termination
