HEIDENHAIN iTNC 530 HSCI Service Manual

3 – 18 HEIDENHAIN Service Manual iTNC 530 HSCI

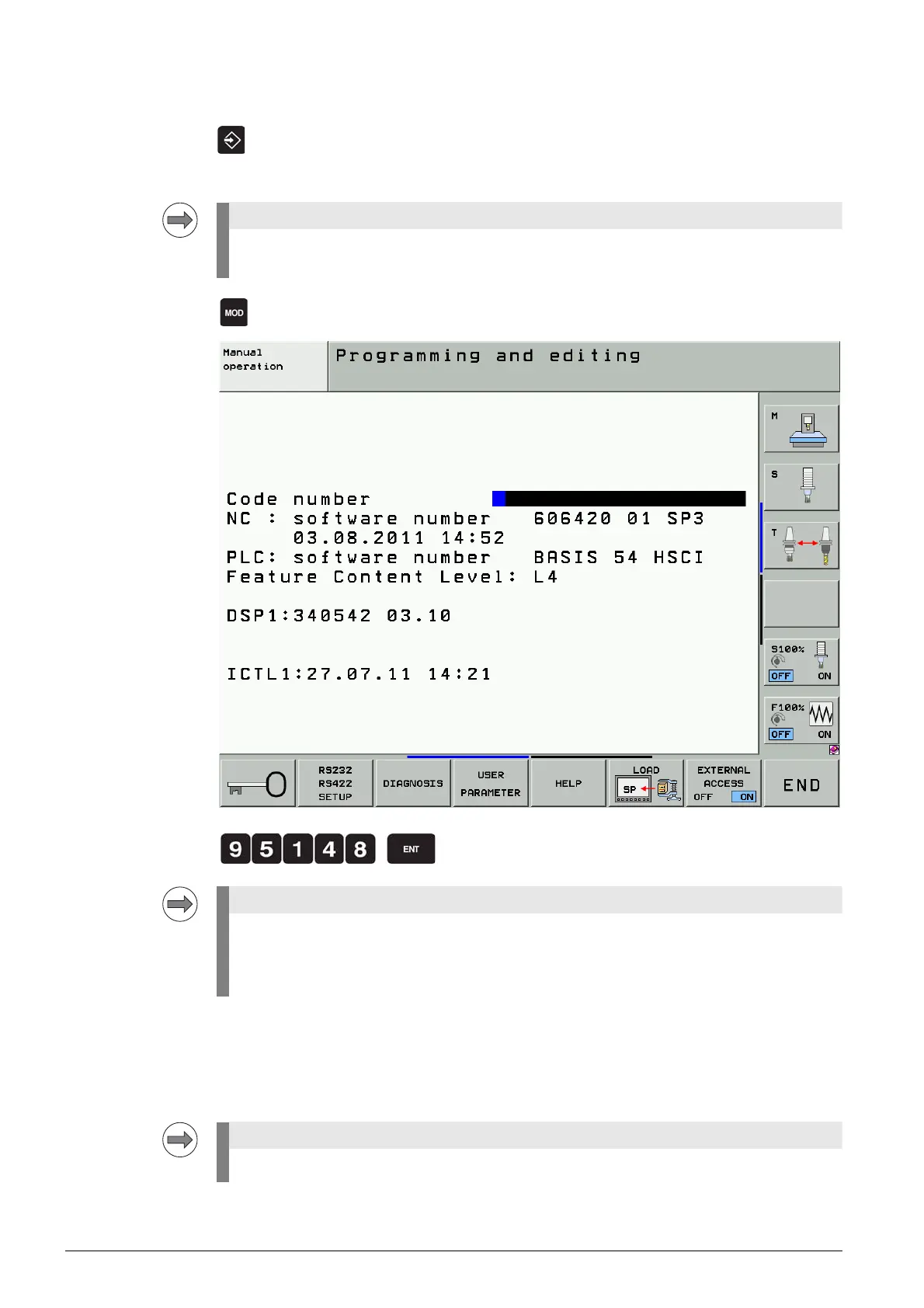

3.3 Input of code numbers
8 Select the Programming and Editing operating mode.
8 If open: Close the program management by pressing the END button.
8 Call the code number window.
8 Enter the code number and press ENT to confirm.
When you have finished your work, reset all previously entered code numbers:
8 Enter the code number 0 and press ENT to confirm.
8 Press END to exit the code-number page.
Note
Pressing the MOD key while the program manager is open calls the screen where you can make
the interface settings.
Note
When certain code numbers are entered, new soft keys are displayed, e.g. CONFIG EDIT,
PLC EDIT, OSCI.
With these soft keys you can also change to the corresponding areas without having to enter
the code number again.
Note
All key codes are reset when the control is restarted.
