February 2012 19 – 321

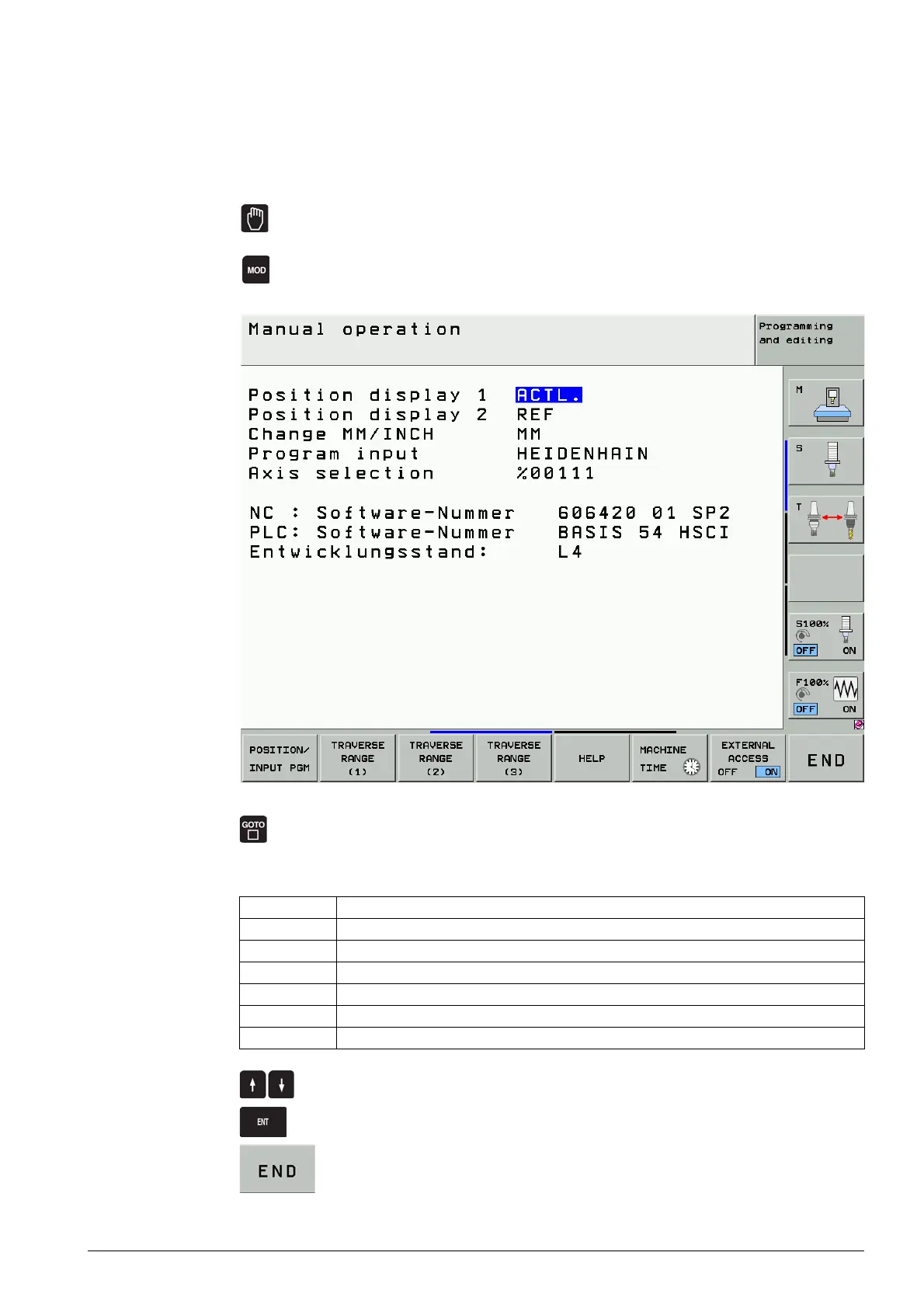

19.6 Switching over the position display for servicing
When servicing it is often important to switch over the position display (e.g., to REF when resetting the
machine datum).
Activation
8 Press the following key combination to switch the position display:
8 Select a machine operating mode (Manual Operation, Program Run/Full Sequence,
etc.)
8 Press the MOD key.
8 Press GOTO. --> A selection window opens.
Description of
the settings
Possible position displays:
8 Using the arrow keys, select the desired position display.
8 Press ENTER to activate the position display.
8 Close the window.
ACTL. Actual position
REF Distance to machine datum
LAG Current following error
NOML. Nominal position
DIST Distance-to-go in the machine coordinate system
DG 3D Distance-to-go in a tilted coordinate system
M118 Handwheel superimposition during program run
