HEIDENHAIN iTNC 530 HSCI Service Manual

February 2012 28 – 473
28.4 Controller unit with integrated UEC inverter

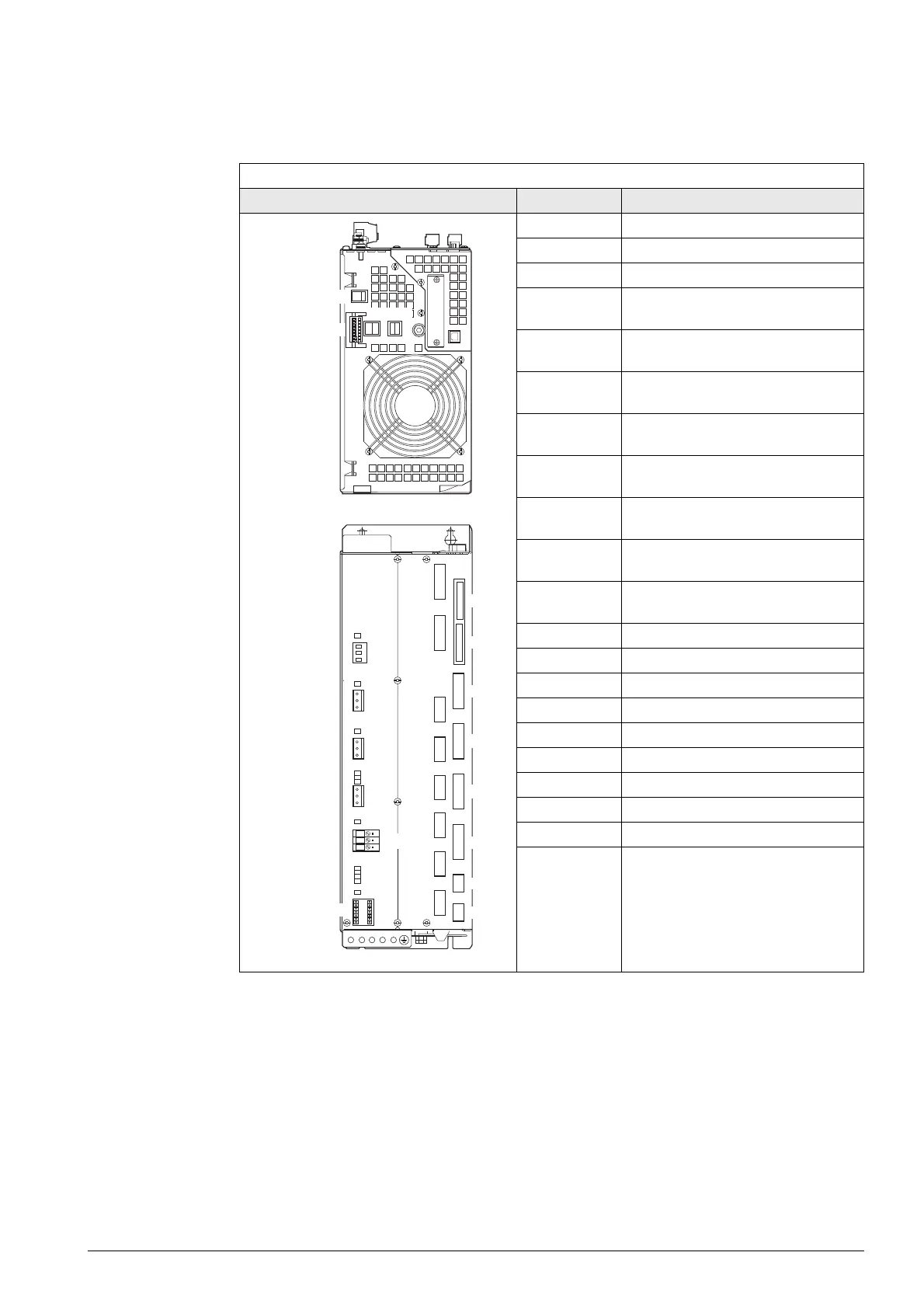

28.4.1 Designations and positions of connectors
UEC 11x: Compact controller unit with integrated inverter and PLC I/Os
Positions of the connectors Connector Function
X4, X5 PLC inputs
X6 PLC outputs
X15 to X19 Speed encoder
X31 Supply voltage for UEC 11x (3 x
400 V ± 10 %)
X71 Spindle safety relay (pulse inhibitor
for spindle)
X72 Safety relay of axes (pulse inhibitor
for axes)
X80 Motor connection for spindle
(24 A rated current at 3.3 kHz)
X81 Motor connection axis 1
(6 A rated current at 3.3 kHz)
X82 Motor connection axis 2
(6 A rated current at 3.3 kHz)
X83 Motor connection axis 3
(9 A rated current at 3.3 kHz)
X84 Motor connection axis 4
(6 A rated current at 3.3 kHz)
X89 Braking resistor
X90 24 V NC output / 3.5 A
X112 TS triggering touch probe
X113 TT triggering touch probe
X201 to X205 Position encoder
X344 24 V supply for motor holding brake
X394 Motor holding brake 1 to 4
X500 HSCI output
X502 HSCI input
Protective ground M5
X90
X89
X394
X344
X205
X204
X203
X202
X201
X84
X83
X82
X81
X80
X71
X5
X4
X18
X17
X16
X15
X113
X112
X19
X206
X72
X20

