HEIDENHAIN iTNC 530 HSCI Service Manual

February 2012 28 – 481
28.5 PLB basic modules

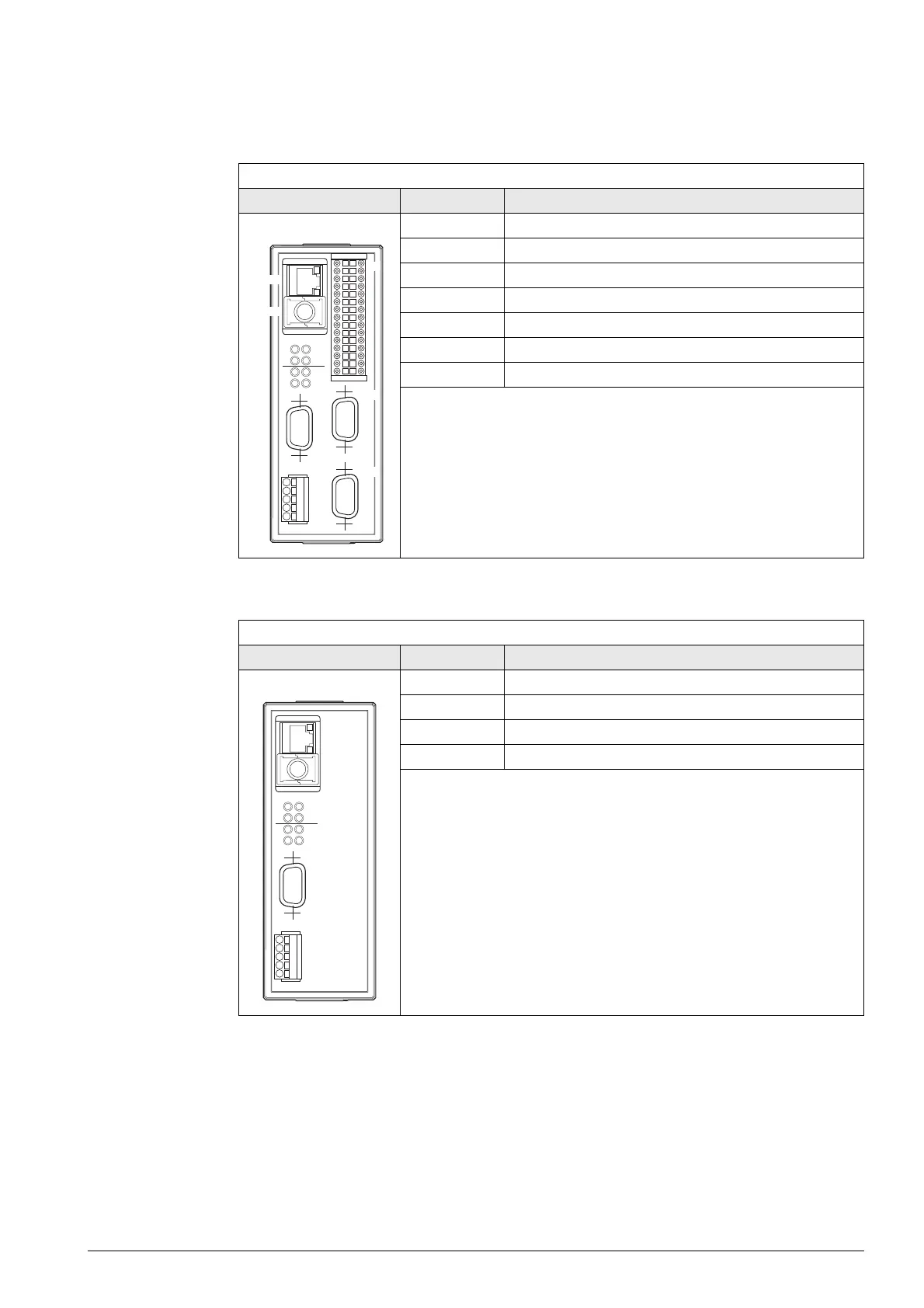

28.5.1 Designations and positions of connectors
PLB 62xx, PLC system module
Connection overview Connector Function
X500 HSCI output
X502 HSCI input
X9 Safety-related PLC inputs/outputs
X2 Reserved, do not assign
X3 +24 V NC, +24 V PLC power supply
X112 TS triggering touch probe
X113 TT triggering touch probe
PLB 61xx, PLC expansion module
Connection overview Connector Function
X500 HSCI output
X502 HSCI input
X2 Reserved, do not assign
X3 +24 V NC, +24 V PLC power supply
X502
X500
X9
X2
X112
X113
X3
X502
X500
X2
X3
