27 – 436 HEIDENHAIN Service Manual iTNC 530 HSCI
27.2 Hardware identification
On every HEIDENHAIN product there is an ID label which indicates ...
îš„ Unit designation
îš„ ID number
îš„ Serial number
Thus, each unit is uniquely identified.
ID label

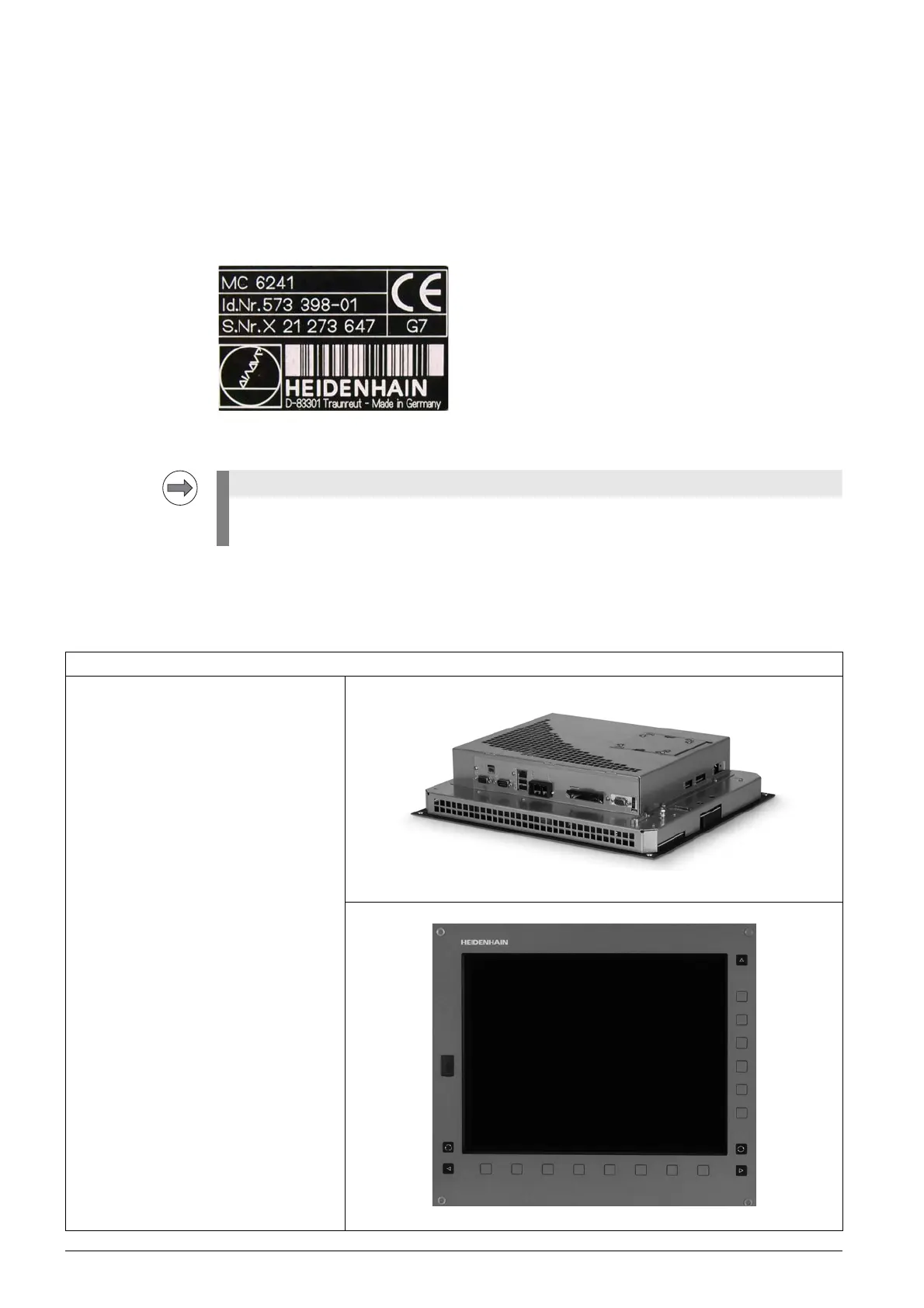

Figure: ID label of an MC 6241
ID labels are attached to the following mandatory and optional components of an iTNC 530 HSCI:
Main computer
Whenever possible, the ID label is located well visible on the front of a product. Otherwise, you
may find it on the side or on the rear of the unit.
Main computer MC 4290 (MC = main computer)
Compact main computer for integration
in the operating console, with built-in
TFT flat-panel display and soft keys.
îš„ Processor:
Pentium M with 1.8 GHz
îš„ 1 GB RAM
îš„ Main computer unit for single-processor
version
îš„ HSCI interface
îš„ 2 x Ethernet interface 100BaseT
îš„ 3 x USB 2.0
(1 in the operating panel, 2 on the rear)
îš„ 1 x RS-232C
îš„ Optionally with Profibus
