17.2.3 Readiness of the inverter system

8 Switch on the machine.

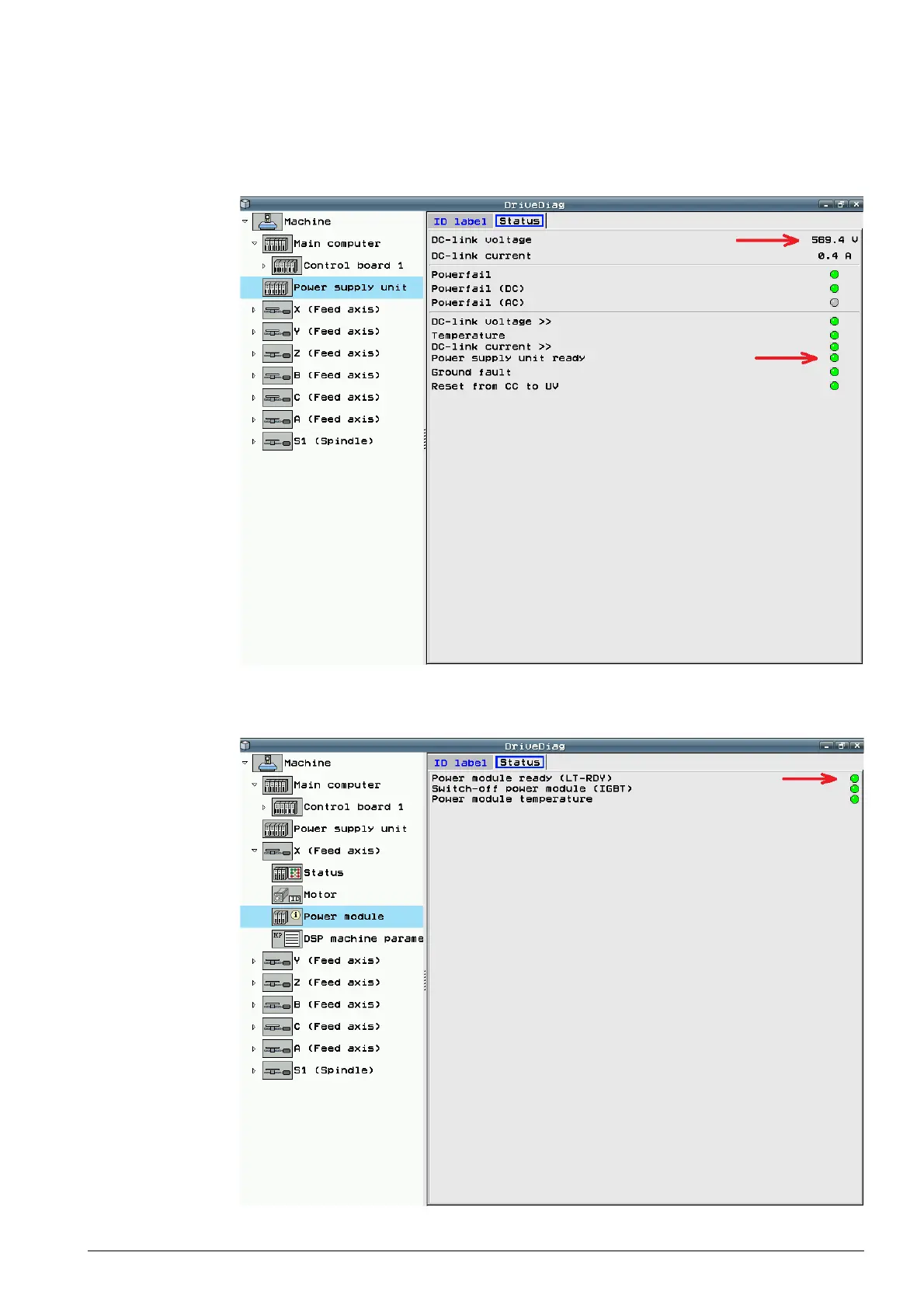

8 Check with DriveDiag, whether the power supply unit is ready and the DC-link voltage built up:

Power supply unit

in DriveDiag

Activation --> See ”DriveDiag” on page 9 – 91.

8 Check with DriveDiag, whether the power modules are ready:

Power module

in DriveDiag

Default Chapter2
