February 2012 14 – 183
14.2 Connection setup
14.2.1 Via Ethernet
Requirements îš„ A laptop/PC with an Ethernet card
îš„ Either an Ethernet crossover cable for direct connection of laptop and control (peer-to-peer
connection) or a non-transposed Ethernet cable (patch cable) for connection via your local network
(Intranet).
Management of
the Ethernet
interface on the
iTNC 530 HSCI
The Ethernet interface is managed by the HeROS HEIDENHAIN operating system. The settings of the
Ethernet interface can be requested via the code number NET123.
Connection via your
local network
Ask your system administrator!
Connection setup
at the customer's
(service call)
It is advisable to set up a direct connection between your laptop and the control (peer-to-peer).
8 Ask your customer whether you may disconnect the control from his in-house network for the
duration of your work.
8 Connect your laptop directly to the control by means of an Ethernet crossover cable.

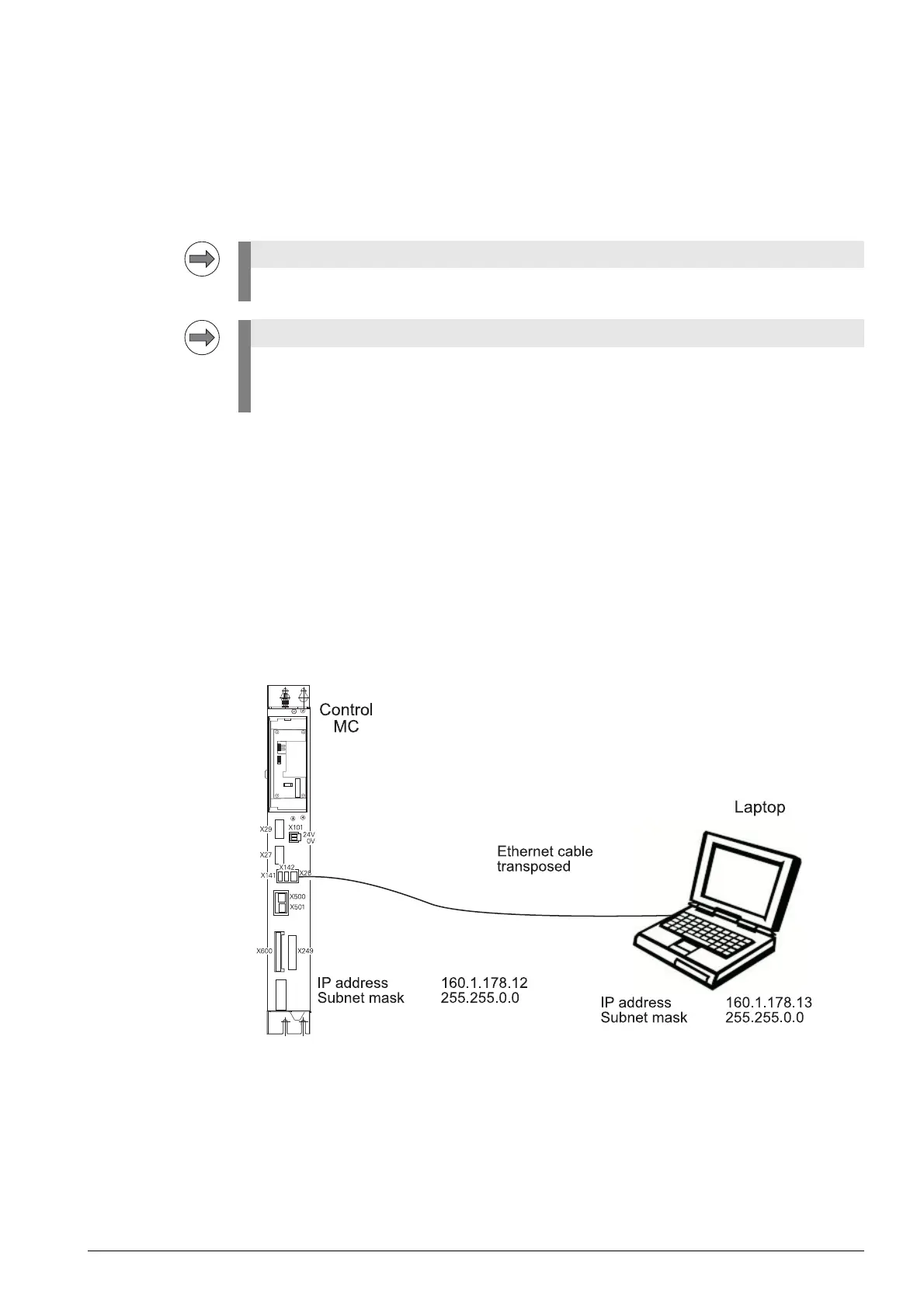

Figure: Example of a peer-to-peer connection
8 Now either adapt the IP address and the subnet mask of your laptop to the IP address and the
subnet mask of the iTNC 530 HSCI , or vice versa.
On the following pages you will find the descriptions for requesting and adapting the Ethernet settings.
Mark your cable as "transposed" or "non-transposed"!
On modern laptops the Ethernet interface is set automatically.
Here, it is of no importance, whether the connected Ethernet cable is transposed or non-
transposed.
